MT-4B-AS-BL03

Active

Unictron Technologies Corporation

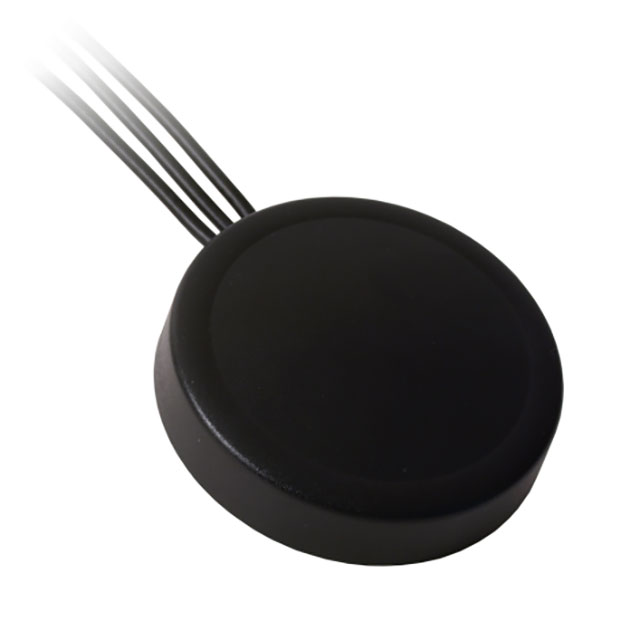

3-IN-1 COMBO EXTERNAL ANTENNA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MT-4B-AS-BL03

Active

Unictron Technologies Corporation

3-IN-1 COMBO EXTERNAL ANTENNA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MT-4B-AS-BL03

Antenna Type	Module
Applications	GPS, GNSS, UMTS, Galileo, GSM, DCS, LTE, Beidou, Wi-Fi, PCS, GLONASS
Features	Cable
Features	3 m
Frequency (Center/Band)	761 MHz, 2.495 GHz, 1.575 GHz, 1.561 GHz, 5.8 GHz, 1.795 GHz, 2.4 GHz, 1.602 GHz, 892 MHz, 2.045 GHz, 1.92 GHz, 3.55 GHz
Frequency Group	Wide Band
Frequency Range [Max]	1.607 GHz, 2.17 GHz, 3.8 GHz, 960 MHz, 1.563 GHz, 1.576 GHz, 1.88 GHz, 824 MHz, 2.69 GHz, 1.99 GHz
Frequency Range [Min]	1920 MHz, 1.559 GHz, 698 MHz, 3.3 GHz, 1.574 GHz, 824 MHz, 2.3 GHz, 1.597 GHz, 1.85 GHz, 1.71 GHz
Gain	4.77 dBi, 4.89 dBi, 4.24 dBi, 7.12 dBi, 3.62 dBi, 4.46 dBi, 7.23 dBi, 6.97 dBi, 1.44 dBi, 3.19 dBi, -78 dBi, 4.31 dBi, 6.44 dBi, 7.87 dBi, 1.21 dBi
Height (Max) [Max]	0.622 "
Height (Max) [Max]	15.8 mm
Mounting Type	Adhesive, Magnetic
Number of Bands	12
Return Loss [Max]	-6 dB
Return Loss [Min]	-10 dB
RF Family/Standard	Navigation, WiFi, Cellular
VSWR	2, 3

MT-4B Series

Part	Gain	Return Loss [Max]	Return Loss [Min]	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Antenna Type	Features	Features	VSWR	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	Applications	Frequency Group	Number of Bands	Mounting Type	Return Loss
Unictron Technologies Corporation MT-4B-AS-BL03	-78 dBi 1.21 dBi 1.44 dBi 3.19 dBi 3.62 dBi 4.24 dBi 4.31 dBi 4.46 dBi 4.77 dBi 4.89 dBi 6.44 dBi 6.97 dBi 7.12 dBi 7.23 dBi 7.87 dBi	-6 dB	-10 dB	1.563 GHz 1.576 GHz 1.607 GHz 1.88 GHz 1.99 GHz 2.17 GHz 2.69 GHz 3.8 GHz 824 MHz 960 MHz	1.559 GHz 1.574 GHz 1.597 GHz 1.71 GHz 1.85 GHz 2.3 GHz 3.3 GHz 698 MHz 824 MHz 1920 MHz	Cellular Navigation WiFi	Module	Cable	3 m	2 3	1.561 GHz 1.575 GHz 1.602 GHz 1.795 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.495 GHz 3.55 GHz 5.8 GHz 761 MHz 892 MHz	0.622 "	15.8 mm	Beidou DCS Galileo GLONASS GNSS GPS GSM LTE PCS UMTS Wi-Fi	Wide Band	12	Adhesive Magnetic
Unictron Technologies Corporation MT-4B-AC-BL03	-2.17 dBi 0.15 dBi 1.21 dBi 1.44 dBi 2.52 dBi 2.71 dBi 7.93 dBi			1.563 GHz 1.576 GHz 1.607 GHz 1.88 GHz 1.99 GHz 2.17 GHz 2.69 GHz 824 MHz 960 MHz	1.559 GHz 1.574 GHz 1.597 GHz 1.71 GHz 1.85 GHz 2.3 GHz 698 MHz 824 MHz 1920 MHz	Cellular Navigation	Module		5 m	2	1.561 GHz 1.575 GHz 1.602 GHz 1.795 GHz 1.92 GHz 2.045 GHz 2.495 GHz 761 MHz 892 MHz	0.787 in	20 mm	Beidou DCS Galileo GLONASS GNSS GPS GSM LTE PCS UMTS	Wide Band	9	Screw Mount	-10 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.56

Description

General part information

MT-4B Series

761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi Module RF Antenna 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz 3.62dBi, 4.24dBi, 1.21dBi, 1.21dBi, 1.44dBi, 4.77dBi, 4.77dBi, 4.31dBi, 6.44dBi, 7.23dBi, 7.87dBi, 7.12dBi, -0.78dBi, 6.97dBi, 4.89dBi, 4.46dBi, 3.19dBi SMA Male Adhesive, Magnetic
