0250010902

Obsolete

Molex

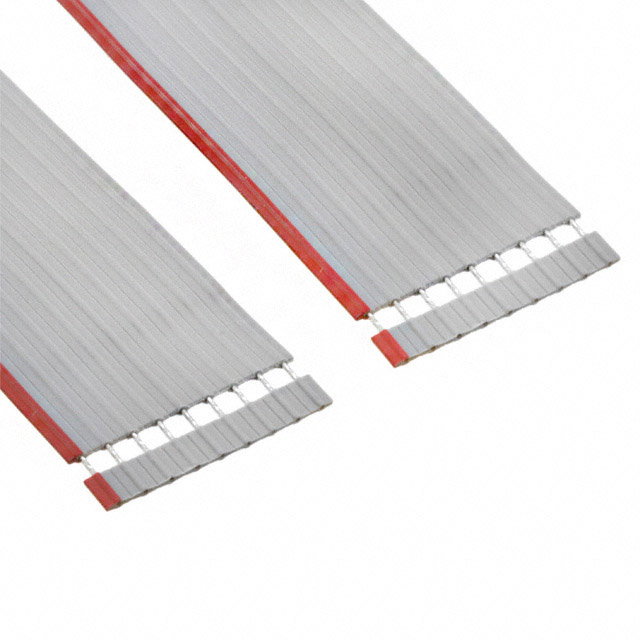

CABLE ASSEMBLY 0.05M 26AWG 2.54MM 9 TO 9 POS JUMPER TO JUMPER BAG

Search across all available documentation for this part.

Obsolete

Molex

CABLE ASSEMBLY 0.05M 26AWG 2.54MM 9 TO 9 POS JUMPER TO JUMPER BAG

Technical Specifications

Parameters and characteristics for this part

Specification	0250010902

Cable Type	Ribbon
Length	2.25 in
Length	57.15 mm
Length - Exposed Ends [x]	0.125 in
Length - Exposed Ends [x]	3.18 mm
Number of Conductors	9
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination Style	Completely Exposed Wires on Both Sides with Protective Tab

Part	Pitch [x]	Pitch [x]	Number of Conductors	Termination Style	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length [x]	Length [x]	Length	Length
Molex 0250010304	2.54 mm	0.1 in	3	Completely Exposed Wires on Both Sides with Protective Tab	Ribbon	0.125 in	3.18 mm	107.95 mm	4.25 in
Molex 0250010806	2.54 mm	0.1 in	8	Completely Exposed Wires on Both Sides with Protective Tab	Ribbon	0.125 in	3.18 mm			158.75 mm	6.25 in
Molex 0250010701	2.54 mm	0.1 in	7	Completely Exposed Wires on Both Sides with Protective Tab	Ribbon	0.125 in	3.18 mm			31.75 mm	1.25 in
Molex 0250010906	2.54 mm	0.1 in	9	Completely Exposed Wires on Both Sides with Protective Tab	Ribbon	0.125 in	3.18 mm			158.75 mm	6.25 in
Molex 0250010704	2.54 mm	0.1 in	7	Completely Exposed Wires on Both Sides with Protective Tab	Ribbon	0.125 in	3.18 mm	107.95 mm	4.25 in
Molex 0250010402	2.54 mm	0.1 in	4	Completely Exposed Wires on Both Sides with Protective Tab	Ribbon	0.125 in	3.18 mm			57.15 mm	2.25 in
Molex 0250010606	2.54 mm	0.1 in	6	Completely Exposed Wires on Both Sides with Protective Tab	Ribbon	0.125 in	3.18 mm			158.75 mm	6.25 in
Molex 0250010604	2.54 mm	0.1 in	6	Completely Exposed Wires on Both Sides with Protective Tab	Ribbon	0.125 in	3.18 mm	107.95 mm	4.25 in
Molex 0250010802	2.54 mm	0.1 in	8	Completely Exposed Wires on Both Sides with Protective Tab	Ribbon	0.125 in	3.18 mm			57.15 mm	2.25 in
Molex 0250010902	2.54 mm	0.1 in	9	Completely Exposed Wires on Both Sides with Protective Tab	Ribbon	0.125 in	3.18 mm			57.15 mm	2.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 Position Ribbon Cable 0.100" (2.54mm) 2.250" (57.15mm)

Technical documentation and resources

No documents available
