NHD-0208BZ-FL-GBW

Active

Newhaven Display Intl

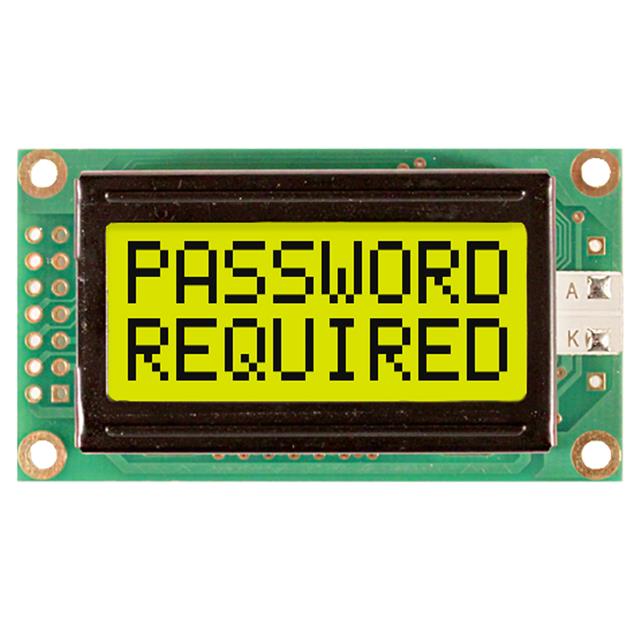

LCD MOD 16DIG 8X2 TRANSF YLW/GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Safe Handling Procedure Datasheet +1

NHD-0208BZ-FL-GBW

Active

Newhaven Display Intl

LCD MOD 16DIG 8X2 TRANSF YLW/GRN

Deep-Dive with AI

DocumentsLCD Safe Handling Procedure Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-0208BZ-FL-GBW

Background Color	Green
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	2.96 mm
Character Size [z]	5.56 mm
Controller Type	SPLC780D, ST7066U
Display Format [x]	8
Display Format [y]	2
Display Mode	Transflective
Display Type	STN - Super-Twisted Nematic
Dot Size [x]	0.56 mm
Dot Size [y]	0.66 mm
Interface	Parallel
Number of Characters	16
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	58 mm
Outline L x W x H [y]	32 mm
Outline L x W x H [z]	13 mm
Text Color	Blue
Viewing Area [x]	38 mm
Viewing Area [y]	16 mm
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.7 V

NHD-0208 Series

Part	Display Format [y]	Display Format [x]	Text Color	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Number of Characters	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Background Color	Character Format [y]	Character Format [x]	Dot Size [x]	Dot Size [y]	Viewing Area [x]	Viewing Area [y]	Display Type	Display Mode	Controller Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Size [z]	Character Size [y]	Backlight	Voltage - Supply
Newhaven Display Intl NHD-0208AZ-FL-GBW	2	8	Blue	35.4 mm	13.5 mm	40 mm	16	Parallel	-20 C	70 °C	Green	8 Dots	5 Dots	0.55 mm	0.55 mm	30.4 mm	13.9 mm	STN - Super-Twisted Nematic	Transflective	SPLC780D ST7066U	4.5 V	5.5 V
Newhaven Display Intl NHD-0208BZ-RN-YBW	2	8	Gray	32 mm	9.5 mm	58 mm	16	Parallel	-20 C	70 °C	Green	8 Dots	5 Dots	0.56 mm	0.66 mm	38 mm	16 mm	STN - Super-Twisted Nematic	Reflective	SPLC780D ST7066U	4.7 V	5.5 V	5.56 mm	2.96 mm	Without Backlight
Newhaven Display Intl NHD-0208BZ-FSW-GBW-33V3	2	8	Blue	32 mm	13 mm	58 mm	16	Parallel	-20 C	70 °C	White	8 Dots	5 Dots	0.56 mm	0.66 mm	38 mm	16 mm	STN - Super-Twisted Nematic	Transflective	SPLC780D ST7066U	3.1 V	3.5 V	5.56 mm	2.96 mm	LED - White
Newhaven Display Intl NHD-0208BZ-FSW-GBW-3V3	2	8	Gray	32 mm	13 mm	58 mm	16	Parallel	-20 C	70 °C	White	8 Dots	5 Dots	0.56 mm	0.66 mm	38 mm	16 mm	STN - Super-Twisted Nematic	Transflective		2.7 V	3.3 V	5.56 mm	2.96 mm	LED - White
Newhaven Display Intl NHD-0208AZ-RN-YBW	2	8	Gray	35.4 mm	13.5 mm	40 mm	16	Parallel	-20 C	70 °C	Green	8 Dots	5 Dots	0.55 mm	0.55 mm	30.4 mm	13.9 mm	STN - Super-Twisted Nematic	Reflective	SPLC780D ST7066U	4.5 V	5.5 V			Without Backlight
Newhaven Display Intl NHD-0208BZ-FL-GBW	2	8	Blue	32 mm	13 mm	58 mm	16	Parallel	-20 C	70 °C	Green	8 Dots	5 Dots	0.56 mm	0.66 mm	38 mm	16 mm	STN - Super-Twisted Nematic	Transflective	SPLC780D ST7066U	4.7 V	5.5 V	5.56 mm	2.96 mm
Newhaven Display Intl NHD-0208AZ-FL-YBW	2	8	Gray	35.4 mm	13.5 mm	40 mm	16	Parallel	-20 C	70 °C	Green	8 Dots	5 Dots	0.55 mm	0.55 mm	30.4 mm	13.9 mm	STN - Super-Twisted Nematic	Transflective	SPLC780D ST7066U	4.5 V	5.5 V
Newhaven Display Intl NHD-0208AZ-RN-GBW	2	8	Blue	35.4 mm	13.5 mm	40 mm	16	Parallel	-20 C	70 °C	Gray	8 Dots	5 Dots	0.55 mm	0.55 mm	30.4 mm	13.9 mm	STN - Super-Twisted Nematic	Reflective	SPLC780D ST7066U	4.5 V	5.5 V			Without Backlight
Newhaven Display Intl NHD-0208AZ-FSW-GBW-33V3	2	8	Blue	35.4 mm	13.5 mm	40 mm	16	Parallel	-20 C	70 °C	Gray	8 Dots	5 Dots	0.55 mm	0.55 mm	30.4 mm	13.9 mm	STN - Super-Twisted Nematic	Transflective	SPLC780D ST7066U					LED - White	3.3 V
Newhaven Display Intl NHD-0208BZ-RN-YBW-3V	2	8	Gray	32 mm	9.5 mm	58 mm	16	Parallel	-20 C	70 °C	Green	8 Dots	5 Dots	0.56 mm	0.66 mm	38 mm	16 mm	STN - Super-Twisted Nematic	Reflective		2.7 V	3.3 V	5.56 mm	2.96 mm	Without Backlight

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 8.71

Description

General part information

NHD-0208 Series

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 58.00mm x 32.00mm x 13.00mm
