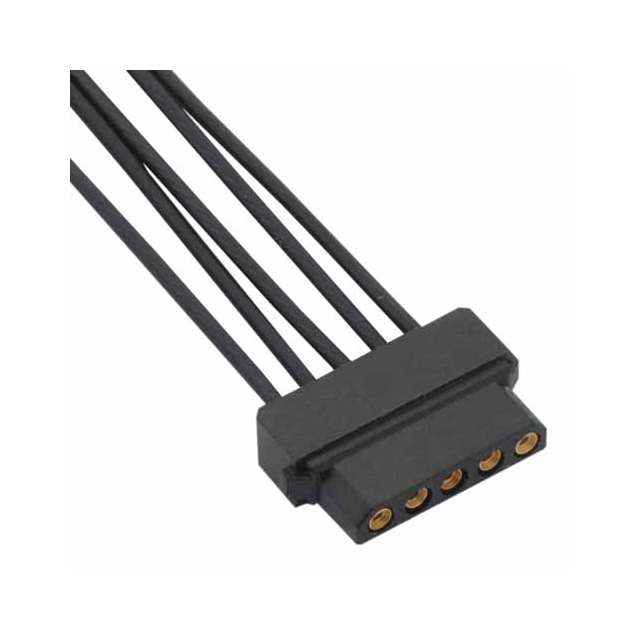

B5740-105-F-C-0 - B5740-1XX

B5740-105-F-C-0

Active
Harwin Inc.

5 POS. FEMALE SIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-0110001M80-001+2
B5740-105-F-C-0 - B5740-1XX

B5740-105-F-C-0

Active
Harwin Inc.

5 POS. FEMALE SIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-0110001M80-001+2

Technical Specifications

Parameters and characteristics for this part

SpecificationB5740-105-F-C-0
Cable TerminationCrimp
ColorBlack
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness0.3 Ám
Contact Finish Thickness11.8 Áin
Contact TypeFemale Socket
Fastening TypeLocking Ramp
Mounting TypeFree Hanging (In-Line)
Number of Rows1
Pitch [x]0.079 in
Pitch [x]2 mm
Wire Gauge [Max]28 AWG
Wire Gauge [Min]24 AWG
Wire TypeDiscrete

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 80$ 11.79
NewarkEach 50$ 13.59
100$ 13.25
250$ 11.88
500$ 11.19
1000$ 9.82
2500$ 9.34

Description

General part information

B5740-105 Series

5 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
