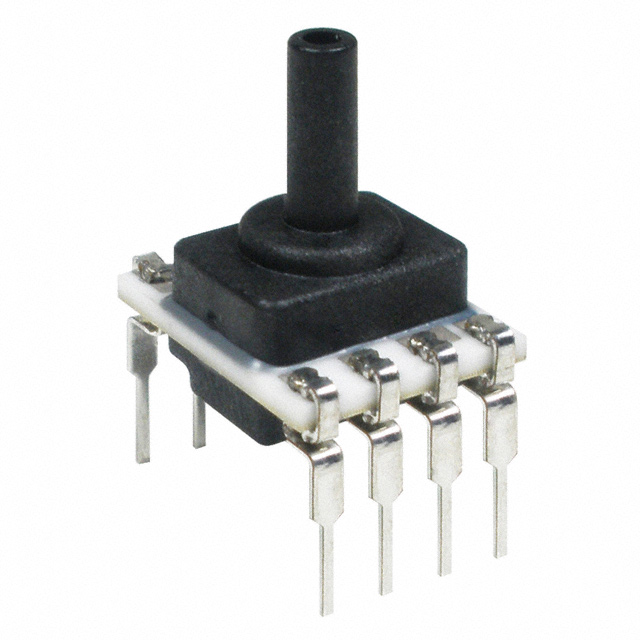

TSCDLNN100MDUCV

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 1.45PSID 0.1" .022V 8DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPressure Sensors Line Guide TSC, NSC Series Install Instr +1

TSCDLNN100MDUCV

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 1.45PSID 0.1" .022V 8DIP

Deep-Dive with AI

DocumentsPressure Sensors Line Guide TSC, NSC Series Install Instr +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSCDLNN100MDUCV

Accuracy	0.15 %
Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure	12.65 PSI
Maximum Pressure	87.2 kPa
Mounting Type	Through Hole
Operating Pressure	1.45 PSI
Operating Pressure	10 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	22 mV
Output [Min]	0 mV
Output Type	Wheatstone Bridge
Package / Case	13.3 mm, 0.524 "
Package / Case	8-DIP
Port Size	2.47 mm
Port Size	0.1 "
Port Size	Male
Port Style	Barbless
Pressure Type	Differential
Supplier Device Package	8-DIP
Termination Style	PC Pin
Voltage - Supply [Max]	12 V
Voltage - Supply [Min]	1.5 V

TSCDLNN Series

Part	Port Style	Termination Style	Output Type	Features	Supplier Device Package	Port Size	Port Size	Port Size	Operating Pressure	Operating Pressure	Pressure Type	Package / Case	Package / Case	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Mounting Type	Output [Max]	Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure	Maximum Pressure	Operating Pressure [custom]	Operating Pressure [custom]
Honeywell Sensing and Productivity Solutions TSCDLNN001PGUCV	Barbless	PC Pin	Wheatstone Bridge	Temperature Compensated	8-DIP	2.47 mm	0.1 "	Male	6.89 kPa	1 PSI	Vented Gauge	0.524 " 13.3 mm	8-DIP	0.2 %	12.7 PSI	87.56 kPa	Board Mount	Through Hole	7.5 mV	5 V	12 V	1.5 V	85 °C	-40 °C
Honeywell Sensing and Productivity Solutions TSCDLNN100MDUCV	Barbless	PC Pin	Wheatstone Bridge	Temperature Compensated	8-DIP	2.47 mm	0.1 "	Male	10 kPa	1.45 PSI	Differential	0.524 " 13.3 mm	8-DIP	0.15 %			Board Mount	Through Hole	22 mV		12 V	1.5 V	85 °C	-40 °C	12.65 PSI	87.2 kPa
Honeywell Sensing and Productivity Solutions TSCDLNN015PGUCV	Barbless	PC Pin	Wheatstone Bridge	Temperature Compensated	8-DIP	2.47 mm	0.1 "	Male			Vented Gauge	0.524 " 13.3 mm	8-DIP	0.15 %	60 PSI	413.69 kPa	Board Mount	Through Hole	26.25 mV		12 V	1.5 V	85 °C	-40 °C			15 PSI	103.42 kPa
Honeywell Sensing and Productivity Solutions TSCDLNN100PGUCV	Barbless	PC Pin	Wheatstone Bridge	Temperature Compensated	8-DIP	2.47 mm	0.1 "	Male	689.48 kPa	100 PSI	Vented Gauge	0.524 " 13.3 mm	8-DIP	0.15 %	245 PSI	1689.22 kPa	Board Mount	Through Hole	30.5 mV		12 V	1.5 V	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TSCDLNN Series

Pressure Sensor ±1.45PSI (±10kPa) Differential Male - 0.1" (2.47mm) Tube 0 mV ~ 22 mV (5V) 8-DIP (0.524", 13.30mm), Top Port
