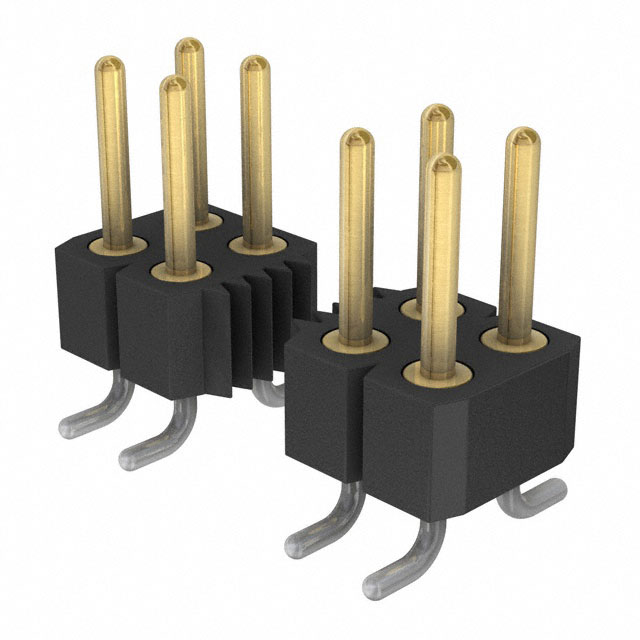

802-V3-018-30-001101

Active

PRECI-DIP SA

CONN HEADER SMD 18POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

802-V3-018-30-001101

Active

PRECI-DIP SA

CONN HEADER SMD 18POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	802-V3-018-30-001101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Mating	0.191 in
Contact Length - Mating	4.85 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

802-V3 Series

...

Part	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Shrouding	Connector Type	Insulation Color	Contact Shape	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Material Flammability Rating	Number of Positions	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Voltage Rating	Insulation Height	Insulation Height [z]	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Contact Length - Mating	Features	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Number of Positions
PRECI-DIP SA 802-V3-046-32-002101	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Unshrouded	Header	Black	Circular	Male Pin	2.54 mm	0.1 in	Push-Pull	29.5 Áin	0.75 Ám	Surface Mount	UL94 V-0	46	Brass	-55 °C	125 °C	2	0.141 in	3.6 mm	3 A	150 VDC	6.91 mm	0.272 "	All	Tin	Gold
PRECI-DIP SA 802-V3-018-30-001101	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Unshrouded	Header	Black	Circular	Male Pin	2.54 mm	0.1 in	Push-Pull	29.5 Áin	0.75 Ám	Surface Mount	UL94 V-0	18	Brass	-55 °C	125 °C	2		0.191 in	3 A	150 VDC			All	Tin	Gold	4.85 mm
PRECI-DIP SA 802-V3-010-32-002191	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Unshrouded	Header	Black	Circular	Male Pin	2.54 mm	0.1 in	Push-Pull	29.5 Áin	0.75 Ám	Surface Mount	UL94 V-0	10	Brass	-55 °C	125 °C	2	0.141 in	3.6 mm	3 A	150 VDC	6.91 mm	0.272 "	All	Tin	Gold		Pick and Place
PRECI-DIP SA 802-V3-010-10-193101	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Unshrouded	Header	Black	Circular	Male Pin	2.54 mm	0.1 in	Push-Pull	29.5 Áin	0.75 Ám	Through Hole	UL94 V-0	10	Brass	-55 °C	125 °C	2	0.118 in	3 mm	3 A	150 VDC	21.21 mm		All	Tin	Gold			0.835 "	3.56 mm	0.14 in	27.75 mm	1.093 in
PRECI-DIP SA 802-V3-040-12-002101	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Unshrouded	Header	Black	Circular	Male Pin	2.54 mm	0.1 in	Push-Pull	29.5 Áin	0.75 Ám	Through Hole	UL94 V-0	40	Brass	-55 °C	125 °C	2	0.141 in	3.6 mm	3 A	150 VDC	6.91 mm	0.272 "	All	Tin	Gold						9.8 mm	0.386 in	0.118 in	3 mm
PRECI-DIP SA 802-V3-060-12-002101	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Unshrouded	Header	Black	Circular	Male Pin	2.54 mm	0.1 in	Push-Pull	29.5 Áin	0.75 Ám	Through Hole	UL94 V-0	60	Brass	-55 °C	125 °C	2	0.141 in	3.6 mm	3 A	150 VDC	6.91 mm	0.272 "	All	Tin	Gold						9.8 mm	0.386 in	0.118 in	3 mm
PRECI-DIP SA 802-V3-006-30-001101	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Unshrouded	Header	Black	Circular	Male Pin	2.54 mm	0.1 in	Push-Pull	29.5 Áin	0.75 Ám	Surface Mount	UL94 V-0	6	Brass	-55 °C	125 °C	2		0.191 in	3 A	150 VDC			All	Tin	Gold	4.85 mm
PRECI-DIP SA 802-V3-032-20-001101	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Unshrouded	Header	Black	Circular	Male Pin	2.54 mm	0.1 in	Push-Pull	29.5 Áin	0.75 Ám	Through Hole Right Angle	UL94 V-0		Brass	-55 °C	125 °C	2	0.195 "	4.95 mm	3 A	150 VDC			All	Tin	Gold					0.126 in				3.2 mm
PRECI-DIP SA 802-V3-016-32-002101	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Unshrouded	Header	Black	Circular	Male Pin	2.54 mm	0.1 in	Push-Pull	29.5 Áin	0.75 Ám	Surface Mount	UL94 V-0		Brass	-55 °C	125 °C	2	0.141 in	3.6 mm	3 A	150 VDC	6.91 mm	0.272 "	All	Tin	Gold										16
PRECI-DIP SA 802-V3-030-20-001101	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Unshrouded	Header	Black	Circular	Male Pin	2.54 mm	0.1 in	Push-Pull	29.5 Áin	0.75 Ám	Through Hole Right Angle	UL94 V-0	30	Brass	-55 °C	125 °C	2	0.195 "	4.95 mm	3 A	150 VDC			All	Tin	Gold					0.126 in				3.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	350	$ 3.86

Description

General part information

802-V3 Series

Connector Header Surface Mount 18 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
