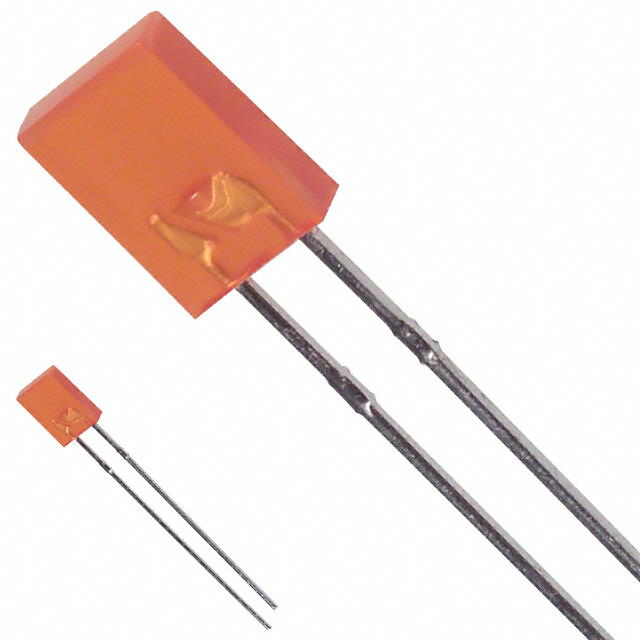

SSL-LX2573AD

Active

Lumex Opto/Components Inc.

LED AMBER DIFF RECT 2MMX5MM T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX2573AD

Active

Lumex Opto/Components Inc.

LED AMBER DIFF RECT 2MMX5MM T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSL-LX2573AD

Color	Amber
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	7 mm
Lens Color	Amber
Lens Size [x]	5 mm
Lens Size [y]	2 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Diffused
Millicandela Rating	5 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	Rectangular 2mmx5mm
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	605 nm

SSL-LX2573 Series

Part	Color	Lens Transparency	Lens Color	Current - Test	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Supplier Device Package	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Lens Size [y]	Lens Size [x]	Lens Style	Configuration	Viewing Angle [custom]	Viewing Angle	Wavelength - Peak
Lumex Opto/Components Inc. SSL-LX2573SUGD	Green	Clear	Green	20 mA	65 mcd	2.1 V	7 mm	Rectangular 2mmx3mm	Radial	Through Hole	2 mm	3 mm	2 mm	5 mm	Rectangle with Flat Top	Independent	90 °
Lumex Opto/Components Inc. SSL-LX2573USBD	Blue	Diffused	Blue	20 mA	70 mcd	3.5 V	7 mm	Rectangular 2mmx5mm	Radial	Through Hole			2 mm	5 mm	Rectangle with Flat Top	Standard		110 °
Lumex Opto/Components Inc. SSL-LX2573PGD	Green	Diffused	Green	20 mA	6 mcd	2.1 V	7 mm	Rectangular 2mmx5mm	Radial	Through Hole			2 mm	5 mm	Rectangle with Flat Top	Standard		110 °	555 nm
Lumex Opto/Components Inc. SSL-LX2573HGW
Lumex Opto/Components Inc. SSL-LX2573SID	Red	Diffused	Red	20 mA	100 mcd	2 V	7 mm	Rectangular 2mmx5mm	Radial	Through Hole			2 mm	5 mm	Rectangle with Flat Top	Standard		110 °	636 nm
Lumex Opto/Components Inc. SSL-LX2573PGW-TD	Green	Diffused	White	20 mA	6 mcd	2.1 V	7 mm	Rectangular 2mmx5mm	Radial	Through Hole			2 mm	5 mm	Rectangle with Flat Top	Standard		110 °	555 nm
Lumex Opto/Components Inc. SSL-LX2573YD	Yellow	Diffused	Yellow	20 mA	10 mcd	2.1 V	7 mm	Rectangular 2mmx5mm	Radial	Through Hole			2 mm	5 mm	Rectangle with Flat Top	Standard		110 °	585 nm
Lumex Opto/Components Inc. SSL-LX2573SBD/A	Blue	Diffused	Blue	20 mA	3 mcd	4.5 V	7 mm	Rectangular 2mmx5mm	Radial	Through Hole			2 mm	5 mm	Rectangle with Flat Top	Standard		110 °	430 nm
Lumex Opto/Components Inc. SSL-LX2573AD	Amber	Diffused	Amber	20 mA	5 mcd	2 V	7 mm	Rectangular 2mmx5mm	Radial	Through Hole			2 mm	5 mm	Rectangle with Flat Top	Standard		110 °	605 nm
Lumex Opto/Components Inc. SSL-LX2573GW-TD	Green	Diffused	White	20 mA	10 mcd	2.2 V	7 mm	Rectangular 2mmx5mm	Radial	Through Hole			2 mm	5 mm	Rectangle with Flat Top	Standard		110 °	565 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.29
		10	$ 0.19
		100	$ 0.13
		500	$ 0.09
		1000	$ 0.07
		2000	$ 0.07
		5000	$ 0.07

Description

General part information

SSL-LX2573 Series

Amber LED Indication - Discrete 2V Radial

Documents

Technical documentation and resources

No documents available
