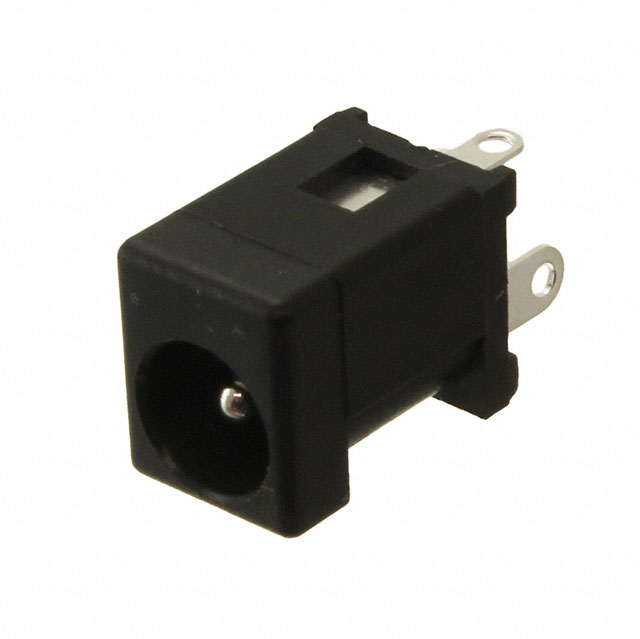

ADC-H-010-10

Active

Adam Tech

DC POWER JACK

Search across all available documentation for this part.

Active

Adam Tech

DC POWER JACK

Technical Specifications

Parameters and characteristics for this part

Specification	ADC-H-010-10

Actual Diameter [diameter]	0.252 ", 0.118 in
Actual Diameter [diameter]	3 mm, 6.4 mm
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	3 mm, 5.5 mm
Industry Recognized Mating Diameter [diameter]	0.118 ", 0.217 "
Insulation Color	Black
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.295 in
Mating Length/Depth	7.5 mm
Mounting Type	Through Hole
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	12 VDC

Part	Number of Positions/Contacts	Gender	Housing Material	Internal Switch(s)	Body Color	Connector Type	Insulation Color	Current Rating (Amps)	Voltage - Rated	Mating Length/Depth	Mating Length/Depth	Shielding	Contact Material - Plating [custom]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Actual Diameter [diameter]	Actual Diameter [diameter]	Material Flammability Rating	Contact Material	Mounting Type	Termination
Adam Tech ADC-H-010-10	2 Conductors 3 Conductors	Male	Polybutylene Terephthalate (PBT)	Normally Closed Single Switch	Black	Jack	Black	5 A	12 VDC	0.295 in	7.5 mm	Unshielded	Silver	3 mm 5.5 mm	0.118 " 0.217 "	-20 C	70 °C	0.118 in 0.252 "	3 mm 6.4 mm	UL94 V-0	Copper Alloy	Through Hole	Solder Eyelet(s)
