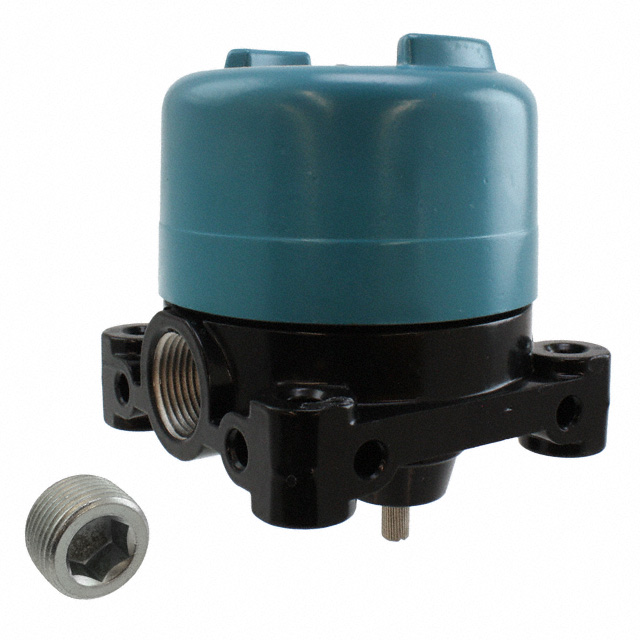

16CX2
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDTX2 1A 120V
Deep-Dive with AI
Search across all available documentation for this part.
16CX2
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDTX2 1A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 16CX2 |
|---|---|
| Actuator Type | Side Rotary - No Lever |
| Circuit | SPDT x 2 |
| Current Rating (Amps) | 1 A |
| Differential Travel | 20 ° |
| Features | Explosion Proof |
| Ingress Protection | IP66 |
| Mounting Type | Chassis Mount |
| Operating Force | 126 gfm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pretravel | 30 ° |
| Release Force | 11 gfm |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1620.24 | |
Description
General part information
16CX2 Series
Switch SPDT x 2 Chassis Mount
Documents
Technical documentation and resources
