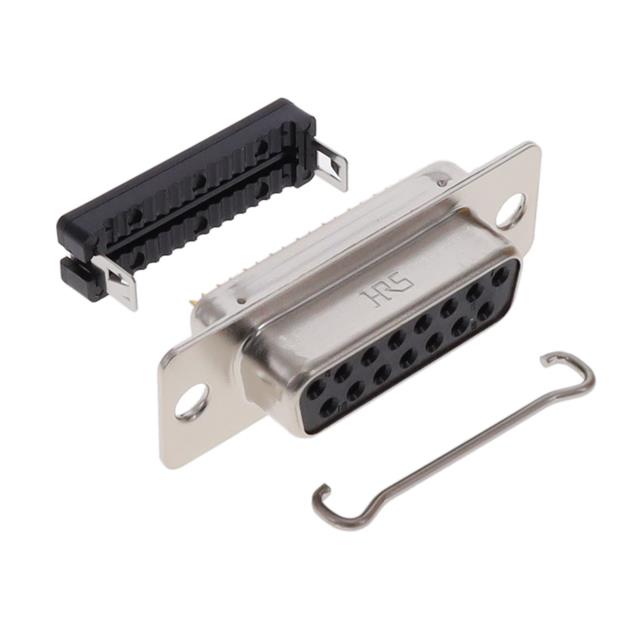

FDAD-15S(55)
ActiveHirose Electric USA, Inc.
CONN LP D-SUB RCPT PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FDAD-15S(55)
ActiveHirose Electric USA, Inc.
CONN LP D-SUB RCPT PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FDAD-15S(55) |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Feed Through |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Primary Material | Metal |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | IDC, Ribbon Cable |
| Voltage Rating | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.89 | |
| 10 | $ 9.91 | |||
| 25 | $ 8.95 | |||
| 50 | $ 8.31 | |||
| 100 | $ 7.72 | |||
| 250 | $ 7.03 | |||
| 500 | $ 6.57 | |||
| 1000 | $ 6.15 | |||
Description
General part information
FDA Series
15 Position D-Sub Receptacle, Female Sockets Connector
