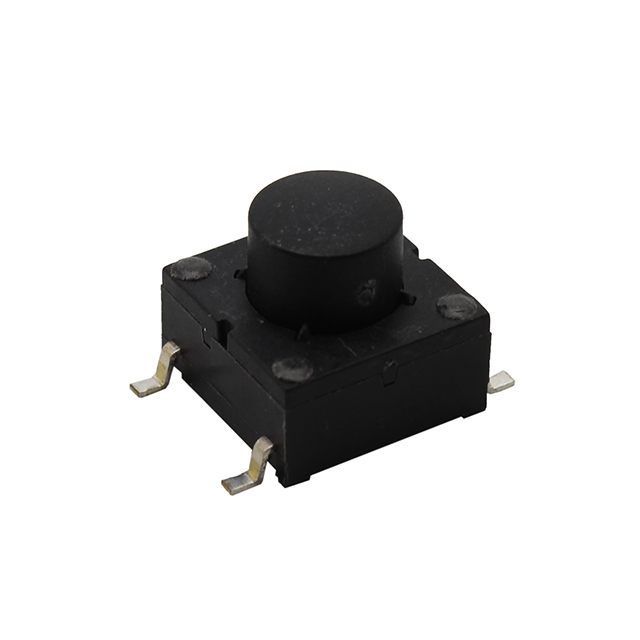

ME029.5F3502
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ME029.5F3502
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ME029.5F3502 |
|---|---|
| Actuator Height off PCB, Vertical | 9.5 mm |
| Actuator Material | Polyamide (PA6T), Nylon 6T |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Surface Mount |
| Operating Force | 350 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 10 mm |
| Outline [y] | 10 mm |
| Switch Function | Off-Mom |
| Switch Travel | 1 mm |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.47 | |
| 10 | $ 2.40 | |||
| 25 | $ 2.19 | |||
| 100 | $ 1.90 | |||
| Digi-Reel® | 1 | $ 2.47 | ||
| 10 | $ 2.40 | |||
| 25 | $ 2.19 | |||
| 100 | $ 1.90 | |||
| Tape & Reel (TR) | 220 | $ 1.72 | ||
| 440 | $ 1.61 | |||
| 660 | $ 1.54 | |||
| 1100 | $ 1.47 | |||
| 1540 | $ 1.42 | |||
| 2200 | $ 1.37 | |||
| 5500 | $ 1.25 | |||
Description
General part information
ME029 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
