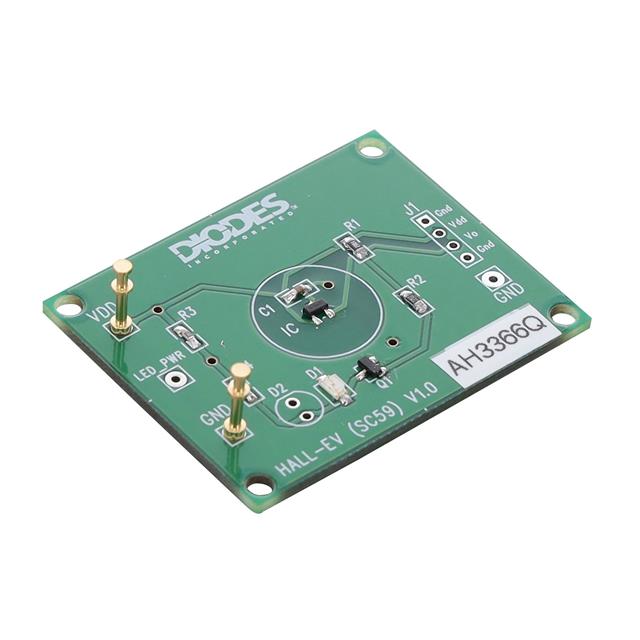

AH3366Q-SA-EVM

Active

Diodes Inc

EVAL BRD HALL SWITCH UA NULL

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BRD HALL SWITCH UA NULL

Technical Specifications

Parameters and characteristics for this part

NRND = Not Recommended for New Design

Part	Test Condition	Function	Mounting Type	Qualification	Polarization	Current - Supply (Max) [Max]	Grade	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Supplier Device Package	Package / Case	Sensing Range	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Technology	Supplied Contents	Sensor Type
Diodes Inc AH3366Q-P-B	25 °C	Unipolar Switch	Through Hole	AEC-Q100	South Pole	4 mA	Automotive	28 V	3 V	Open Drain	3-SIP	3-SIP	8 mT 10 mT	-40 °C	150 °C	60 mA	Hall Effect
Diodes Inc AH3366Q-SA-EVM								28 V	3 V									Board(s)	Hall Effect
Diodes Inc AH3366Q-SA-7	25 °C	Unipolar Switch	Surface Mount	AEC-Q100	South Pole	4 mA	Automotive	28 V	3 V	Open Drain	SOT-23-3	SC-59 SOT-23-3 TO-236-3	8 mT 10 mT	-40 °C	150 °C	60 mA	Hall Effect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.13

General part information

NRND = Not Recommended for New Design

Technical documentation and resources
