EL-GFX-DTC

Active

Lascar Electronics

THERMO HANDHELD -328-2462F DUAL

Search across all available documentation for this part.

Active

Lascar Electronics

THERMO HANDHELD -328-2462F DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	EL-GFX-DTC

Battery Cell Size	1/2AA (2)
Display Type	Dual, LCD
Features	LED Indicator, Flashlight, Data Logging
Includes	Cover, Battery, Probe, Mounting Clip, Cable
Input Type	Thermocouple
Probe Type	K, J, T
Temperature Display	C°, F°
Temperature Range [Max]	2462 °F
Temperature Range [Min]	-200 °C
Type	Handheld

Part	Type	Includes	For Measuring	Battery Cell Size	Input Type	Probe Type	Temperature Display	Display Type	Features	Temperature Range [Max]	Temperature Range [Min]
Lascar Electronics EL-GFX-D2	Data Logger	Battery Bracket Cable Probe Software	Humidity Temperature
Lascar Electronics EL-GFX-DTC	Handheld	Battery Cable Cover Mounting Clip Probe		1/2AA (2)	Thermocouple	J K T	C° F°	Dual LCD	Data Logging Flashlight LED Indicator	2462 °F	-200 °C
Lascar Electronics EL-GFX-DTP	Handheld	Battery Mounting Bracket Probe USB Cable		1/2AA (2)	Probe		C° F°	Dual LCD	Data Logging Flashlight LED Indicator	125 °C	-40 °F
Lascar Electronics EL-GFX-DTP+	Handheld	Battery Mounting Bracket Probe USB Cable		1/2AA (2)	Probe		C° F°	Dual LCD	Data Logging Flashlight LED Indicator	125 °C	-40 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

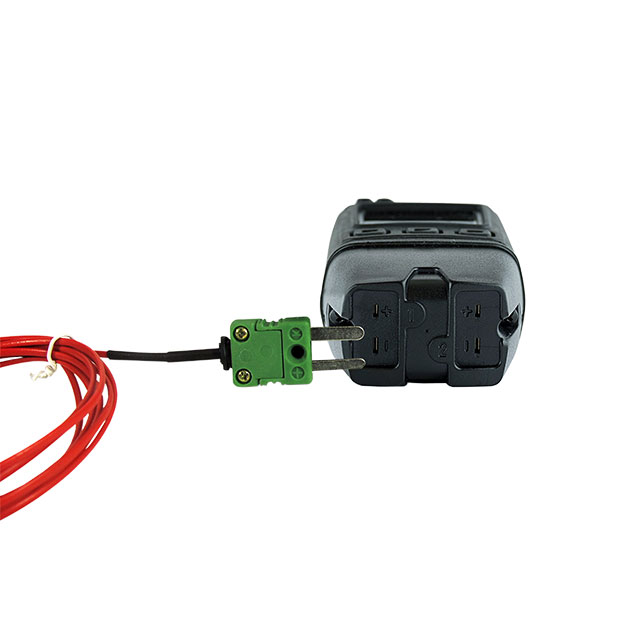

Handheld -328 ~ 2462°F (-200 ~ 1350°C) Thermocouple Thermometer LCD, Dual C°/F° Data Logging, Flashlight, LED Indicator
