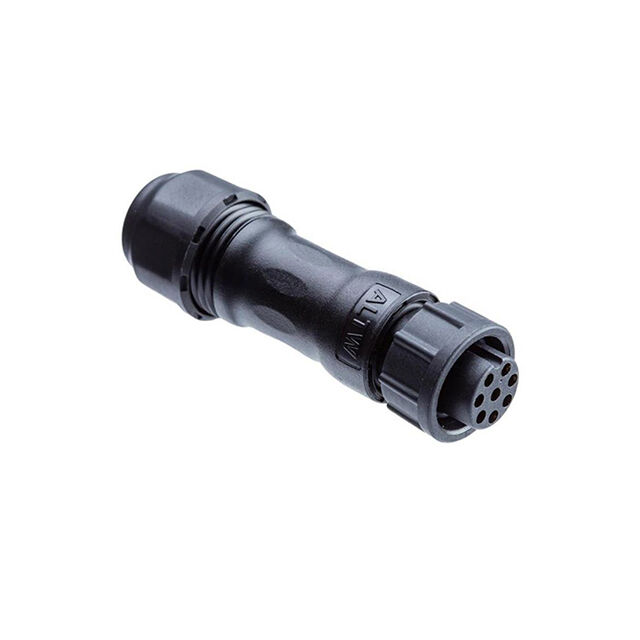

ACBD-08BFMC-SL7LP0

Active

Amphenol LTW

CERES, MIDDLE SIZE, PLASTIC, 10A+5A, 08 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, SCREW THREAD, CRIMP, FIELD INSTALLABLE,

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MIDDLE SIZE, PLASTIC, 10A+5A, 08 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, SCREW THREAD, CRIMP, FIELD INSTALLABLE,

Technical Specifications

Parameters and characteristics for this part

Specification	ACBD-08BFMC-SL7LP0

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Cable Opening [custom]	12 mm, 10 mm
Cable Opening [custom]	0.394 in, 0.472 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5A, 10A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Crimp
Voltage Rating	250 VDC

Part	Contact Finish - Mating	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Color	Orientation	Ingress Protection	Backshell Material, Plating	Shell Material	Shielding	Primary Material	Termination	Material Flammability Rating	Insert Material	Voltage Rating	Mounting Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Features	Contact Material
Amphenol LTW ACBD-08BFMC-SL7LP0	Gold	Male Pins Plug	10 mm 12 mm	0.394 in 0.472 in	Black	Keyed	IP67 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic	Crimp	UL94 V-0	Polyamide (PA) Nylon Glass Filled	250 VDC	Free Hanging (In-Line)	C	-40 °C	105 ░C	8	10A 5A	Backshell	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Male Pins Crimp
