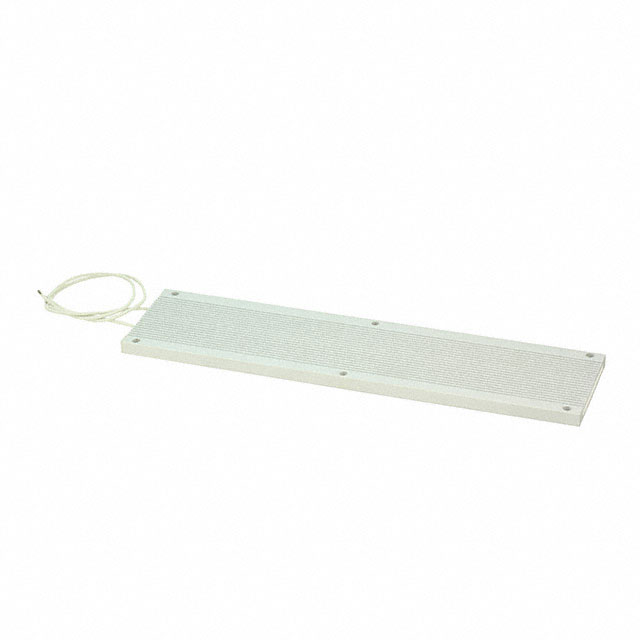

TJT5003R3J

Active

TE Connectivity Passive Product

RES CHAS MNT 3.3 OHM 5% 500W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TJT5003R3J

Active

TE Connectivity Passive Product

RES CHAS MNT 3.3 OHM 5% 500W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TJT5003R3J

Coating, Housing Type	Aluminum
Composition	Wirewound
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Lead Style	Wire Leads
Mounting Feature	Screw Holes
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-25 °C
Package / Case	Rectangular Case
Power (Watts)	500 W
Resistance	3.3 Ohms
Size / Dimension [x]	330 mm
Size / Dimension [x]	12.99 in
Size / Dimension [y]	3.15 in
Size / Dimension [y]	80 mm
Temperature Coefficient	260 ppm/°C
Tolerance	5 %

TJT500 Series

Part	Coating, Housing Type	Tolerance	Power (Watts)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Feature	Lead Style	Resistance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Composition	Temperature Coefficient
TE Connectivity Passive Product TJT500680RJ	Aluminum	5 %	500 W	Rectangular Case	-25 °C	250 °C	0.394 in	10 mm	Screw Holes	Wire Leads	680 Ohms	330 mm	12.99 in	3.15 in	80 mm	Wirewound	260 ppm/°C
TE Connectivity Passive Product TJT50015RJ	Aluminum	5 %	500 W	Rectangular Case	-25 °C	250 °C	0.394 in	10 mm	Screw Holes	Wire Leads	15 Ohms	330 mm	12.99 in	3.15 in	80 mm	Wirewound	260 ppm/°C
TE Connectivity Passive Product TJT5002K2J	Aluminum	5 %	500 W	Rectangular Case	-25 °C	250 °C	0.394 in	10 mm	Screw Holes	Wire Leads	2200 Ohms	330 mm	12.99 in	3.15 in	80 mm	Wirewound	260 ppm/°C
TE Connectivity Passive Product TJT500330RJ	Aluminum	5 %	500 W	Rectangular Case	-25 °C	250 °C	0.394 in	10 mm	Screw Holes	Wire Leads	330 Ohms	330 mm	12.99 in	3.15 in	80 mm	Wirewound	260 ppm/°C
TE Connectivity Passive Product TJT50047RJ	Aluminum	5 %	500 W	Rectangular Case	-25 °C	250 °C	0.394 in	10 mm	Screw Holes	Wire Leads	47 Ohms	330 mm	12.99 in	3.15 in	80 mm	Wirewound	260 ppm/°C
TE Connectivity Passive Product TJT5003R3J	Aluminum	5 %	500 W	Rectangular Case	-25 °C	250 °C	0.394 in	10 mm	Screw Holes	Wire Leads	3.3 Ohms	330 mm	12.99 in	3.15 in	80 mm	Wirewound	260 ppm/°C
TE Connectivity Passive Product TJT5004R7J	Aluminum	5 %	500 W	Rectangular Case	-25 °C	250 °C	0.394 in	10 mm	Screw Holes	Wire Leads	4.7 Ohms	330 mm	12.99 in	3.15 in	80 mm	Wirewound	260 ppm/°C
TE Connectivity Passive Product TJT50068RJ	Aluminum	5 %	500 W	Rectangular Case	-25 °C	250 °C	0.394 in	10 mm	Screw Holes	Wire Leads	68 Ohms	330 mm	12.99 in	3.15 in	80 mm	Wirewound	260 ppm/°C
TE Connectivity Passive Product TJT500470RJ	Aluminum	5 %	500 W	Rectangular Case	-25 °C	250 °C	0.394 in	10 mm	Screw Holes	Wire Leads	470 Ohms	330 mm	12.99 in	3.15 in	80 mm	Wirewound	260 ppm/°C
TE Connectivity Passive Product TJT5001K5J	Aluminum	5 %	500 W	Rectangular Case	-25 °C	250 °C	0.394 in	10 mm	Screw Holes	Wire Leads	1500 Ohms	330 mm	12.99 in	3.15 in	80 mm	Wirewound	260 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 85.65
		10	$ 63.50
		30	$ 56.48
		50	$ 53.78
		100	$ 50.61

Description

General part information

TJT500 Series

3.3 Ohms ±5% 500W Wirewound Chassis Mount Resistor
