Q-020470001001M

Active

Amphenol Custom Cable

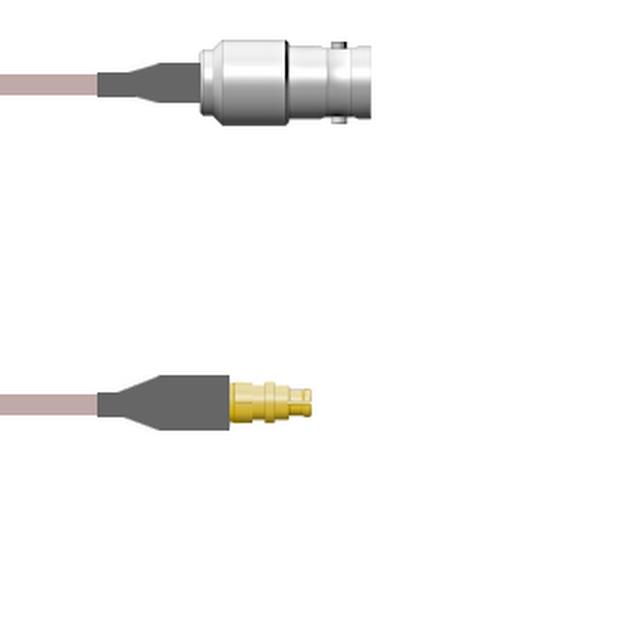

CBL ASSY BNC-SMPM JACK-PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-020470001001M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMPM JACK-PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-020470001001M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMPM Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to SMPM

Q-020470 Series

Part	2nd Contact Gender	Features	1st Contact Gender	Style	2nd Connector	Cable Type	1st Connector Mounting Type	2nd Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	Length	Length	Color	1st Connector	Length
Amphenol Custom Cable Q-020470001024i	Male	Shielded	Female	BNC to SMPM	SMPM Plug	RG-178	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	50 Ohms	24 "	609.6 mm	Copper	BNC Jack
Amphenol Custom Cable Q-020470001084i	Male	Shielded	Female	BNC to SMPM	SMPM Plug	RG-178	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	50 Ohms	84 in	2.1 m	Copper	BNC Jack	7 ft
Amphenol Custom Cable Q-020470001060i	Male	Shielded	Female	BNC to SMPM	SMPM Plug	RG-178	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	50 Ohms	5 '	1.5 m	Copper	BNC Jack	5 ft
Amphenol Custom Cable Q-020470001048i	Male	Shielded	Female	BNC to SMPM	SMPM Plug	RG-178	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	50 Ohms	48 in	1200 mm	Copper	BNC Jack	4 ft
Amphenol Custom Cable Q-020470001003M	Male	Shielded	Female	BNC to SMPM	SMPM Plug	RG-178	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	50 Ohms	118.1 in	3 m	Copper	BNC Jack	9.8 '
Amphenol Custom Cable Q-020470001002M	Male	Shielded	Female	BNC to SMPM	SMPM Plug	RG-178	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	50 Ohms	78.7 in	2 m	Copper	BNC Jack	6.6 ft
Amphenol Custom Cable Q-020470001001M	Male	Shielded	Female	BNC to SMPM	SMPM Plug	RG-178	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	50 Ohms	39.4 in	1 m	Copper	BNC Jack	3.3 ft
Amphenol Custom Cable Q-020470001.75M	Male	Shielded	Female	BNC to SMPM	SMPM Plug	RG-178	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	50 Ohms	29.53 "	750 mm	Copper	BNC Jack
Amphenol Custom Cable Q-0204700010.5M	Male	Shielded	Female	BNC to SMPM	SMPM Plug	RG-178	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	50 Ohms	19.69 "	50 cm	Copper	BNC Jack
Amphenol Custom Cable Q-020470001012i	Male	Shielded	Female	BNC to SMPM	SMPM Plug	RG-178	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	50 Ohms	12 "	304.8 mm	Copper	BNC Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 117.57
		25	$ 115.28
		50	$ 112.99
		100	$ 110.70
		250	$ 108.41

Description

General part information

Q-020470 Series

Cable Assembly Coaxial BNC to SMPM RG-178 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
