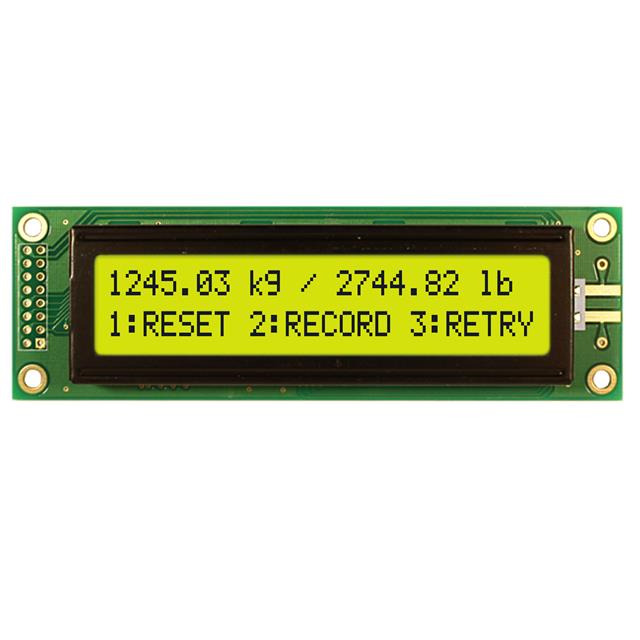

NHD-0224BZ-FL-GBW

Active

Newhaven Display Intl

LCD MOD 48DIG 24X2 TRANS YLW/GRN

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD 48DIG 24X2 TRANS YLW/GRN

Technical Specifications

Parameters and characteristics for this part

Part	Text Color	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Background Color	Viewing Area [y]	Viewing Area [x]	Character Format [y]	Character Format [x]	Display Format [y]	Display Format [x]	Dot Size [y]	Dot Size [z]	Number of Characters	Character Size [z]	Character Size [y]	Backlight	Interface	Display Mode	Operating Temperature [Min]	Operating Temperature [Max]	Controller Type
Newhaven Display Intl NHD-0224BZ1-FSW-FBW	Black	116 mm	13.5 mm	37 mm	FSTN - Film Super-Twisted Nematic	5.5 V	4.7 V	White	18.6 mm	83 mm	8 Dots	5 Dots	2	24	0.5 mm	0.65 mm	48	5.55 mm	2.7 mm	LED - White	Parallel	Transflective	-20 C	70 °C	KS0066U
Newhaven Display Intl NHD-0224BZ-FL-GBW	Blue	116 mm	13.5 mm	37 mm	STN - Super-Twisted Nematic	5.5 V	4.7 V	Green	18.6 mm	83 mm	8 Dots	5 Dots	2	24	0.5 mm	0.65 mm	48	5.55 mm	2.7 mm		Parallel	Transflective	-20 C	70 °C	KS0066U
Newhaven Display Intl NHD-0224BZ-FL-YBW	Blue	116 mm	13.5 mm	37 mm	STN - Super-Twisted Nematic	5.5 V	4.7 V	Green	18.6 mm	83 mm	8 Dots	5 Dots	2	24	0.5 mm	0.65 mm	48	5.55 mm	2.7 mm		Parallel	Transflective	-20 C	70 °C	KS0066U
Newhaven Display Intl NHD-0224BZ-FSW-GBW	Blue	116 mm	13.5 mm	37 mm	STN - Super-Twisted Nematic	5.5 V	4.7 V	White	18.6 mm	83 mm	8 Dots	5 Dots	2	24	0.5 mm	0.65 mm	48	5.55 mm	2.7 mm	LED - White	Parallel	Transflective	-20 C	70 °C	KS0066U

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 116.00mm x 37.00mm x 13.50mm
