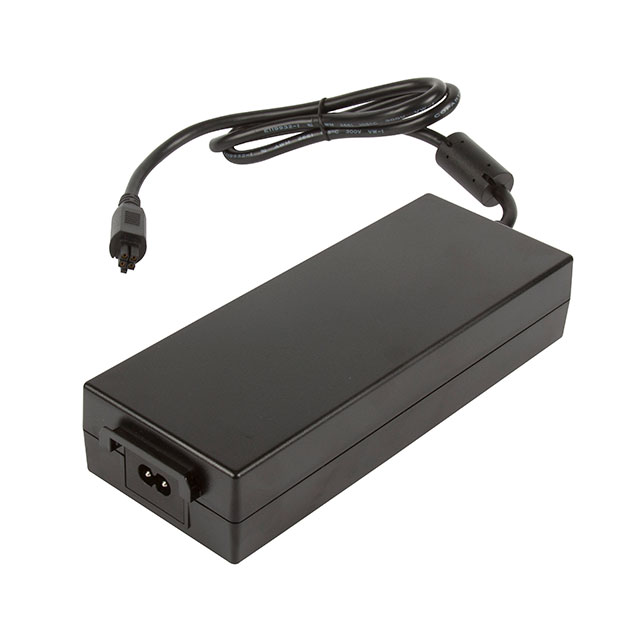

ALM200PS12C2-8

Active

XP POWER

AC/DC DESKTOP ADAPTER 12V 200W

Search across all available documentation for this part.

Active

XP POWER

AC/DC DESKTOP ADAPTER 12V 200W

Technical Specifications

Parameters and characteristics for this part

Specification	ALM200PS12C2-8

Applications	ITE (Commercial), Medical
Approval Agency	CSA, TUV, CB, RCM, CE, CCC, PSE
Cord Length	35.4 in
Cord Length	0.9 m
Current - Output (Max) [Max]	16.7 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector	Rectangular, 4 Position
Power (Watts)	200 W
Region Utilized	International
Size / Dimension [x]	8.23 ", 209 mm
Size / Dimension [y]	82 mm, 3.23 "
Size / Dimension [z]	1.69 in, 43 mm
Standard Number	60601-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output	12 V

Part	Power (Watts)	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Output Connector	Approval Agency	Input Connector	Efficiency	Voltage - Output	Input Type	No Load Power Consumption [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Form	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Current - Output (Max) [Max]
XP POWER ALM200PS12C2-8	200 W	35.4 in	0.9 m	3.23 " 82 mm	8.23 " 209 mm	1.69 in 43 mm	ITE (Commercial) Medical	Rectangular 4 Position	CB CCC CE CSA PSE RCM TUV	IEC 320-C8	CoC Tier 2 Level VI	12 V	Cord	150 mW	264 VAC	80 VAC	60601-1 62368-1	Desktop (Class II)	60 °C	0 °C	International	16.7 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 200 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
