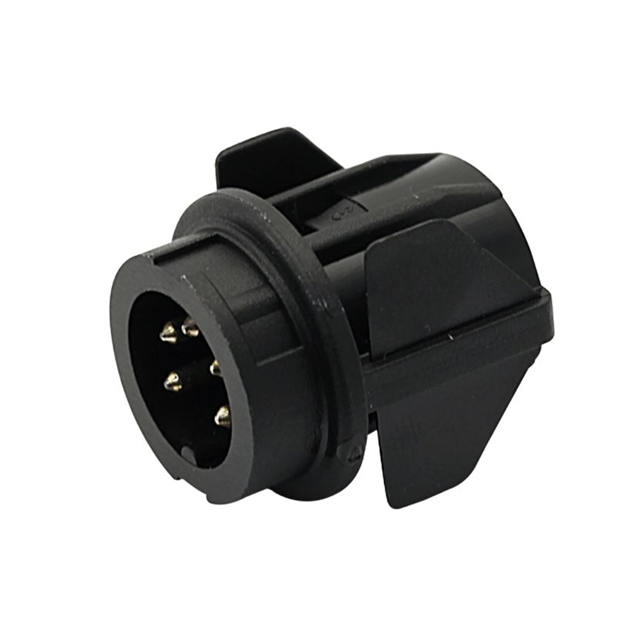

T 3436 550

Active

Amphenol Tuchel Industrial

CONN RCP HSG ML 7P PNL MT SNAPIN

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCP HSG ML 7P PNL MT SNAPIN

Technical Specifications

Parameters and characteristics for this part

Specification	T 3436 550

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-7
Shielding	Unshielded
Type	For Male Pins

Part	Mounting Type	Note	Contact Type	Orientation	Connector Type	Type	Shielding	Fastening Type	Ingress Protection	Contact Size	Shell Material	Contact Shape	Number of Positions	Material Flammability Rating	Shell Size - Insert	Housing Color	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination	Voltage Rating	Primary Material	Contact Finish - Mating
Amphenol Tuchel Industrial T 3436 550	Panel Mount Snap-In	Contacts Not Included	Crimp	Keyed	Receptacle Housing	For Male Pins	Unshielded	Bayonet Lock	IP40	1.5 mm	Plastic	Circular	7	UL94 V-0	M16-7	Black	Thermoplastic	100 °C	-40 °C
Amphenol Tuchel Industrial T 3436 500	Panel Mount Snap-In			Keyed	Male Pins Receptacle			Bayonet Lock	IP40		Plastic		7		M16-7			100 °C	-40 °C	7 A	Solder	250 VDC	Plastic	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.25

General part information

7 Position Circular Connector Receptacle Housing Panel Mount, Snap-In
