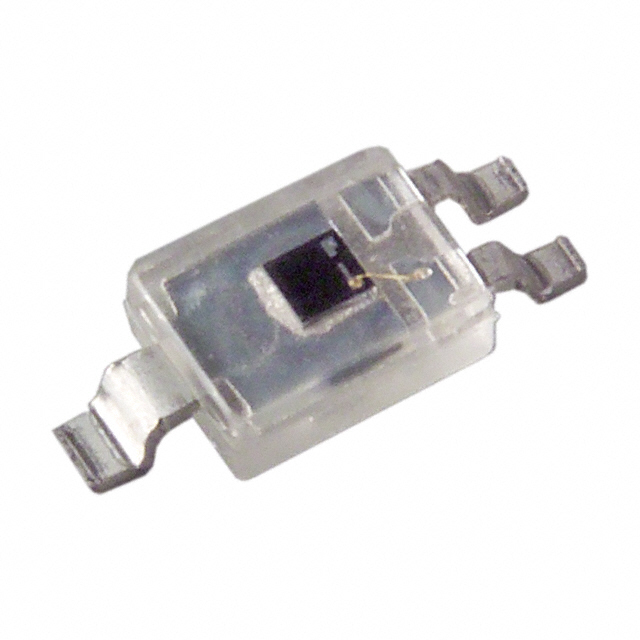

SFH 3410-1/2-Z

Active

ams-OSRAM USA INC.

SENSOR PHOTO 570NM TOP VIEW 3SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

SENSOR PHOTO 570NM TOP VIEW 3SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 3410-1/2-Z

Current - Collector (Ic) (Max) [Max]	20 mA
Current - Dark (Id) (Max) [Max]	50 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	3-SMD, Gull Wing
Viewing Angle	120 °
Voltage - Collector Emitter Breakdown (Max) [Max]	5.5 V
Wavelength	570 nm

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Wavelength	Current - Collector (Ic) (Max) [Max]	Viewing Angle	Current - Dark (Id) (Max) [Max]	Package / Case	Diode Type	Current - Dark (Typ)	Active Area
ams-OSRAM USA INC. SFH 3410-1/2-Z	5.5 V	Surface Mount	100 °C	-40 °C	Top View	570 nm	20 mA	120 °	50 nA	3-SMD Gull Wing
ams-OSRAM USA INC. SFH 3410R		Surface Mount	100 °C	-40 °C		570 nm		120 °		3-SMD Gull Wing	PIN	3 nA	0.29 mm²
ams-OSRAM USA INC. SFH 3410-2/3-Z	5.5 V	Surface Mount	100 °C	-40 °C	Top View	570 nm	20 mA	120 °	50 nA	3-SMD Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 570nm Top View 3-SMD, Gull Wing
