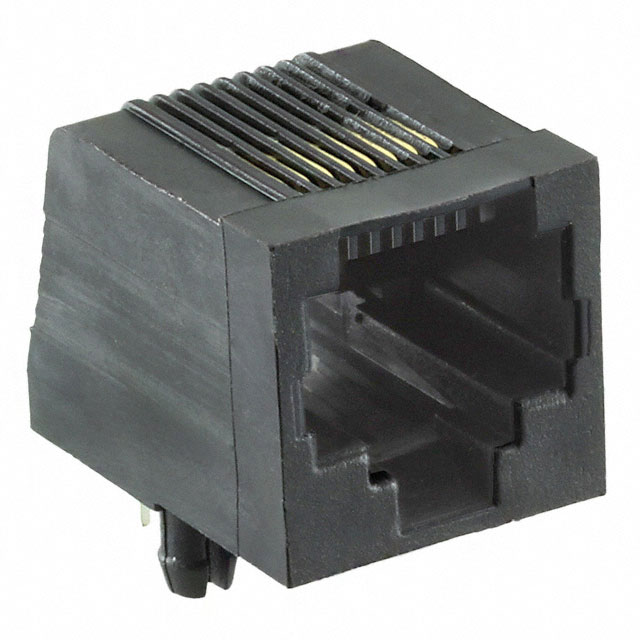

PJ006-8P8C1

Active

On Shore Technology Inc.

CONN MOD JACK 8P8C R/A UNSHLD

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN MOD JACK 8P8C R/A UNSHLD

Technical Specifications

Parameters and characteristics for this part

Specification	PJ006-8P8C1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	LED Color	Number of Positions/Contacts	Contact Finish	Connector Type	Mounting Type	Termination	Number of Rows	Orientation	Tab Direction	Number of Ports	Contact Material	Housing Material
On Shore Technology Inc. PJ006-8P8C1	Unshielded	90 °C	-25 °C	Flash	Does Not Contain LED	8p8c (RJ45 Ethernet)	Gold	Jack	Through Hole	Solder	1	90 °	Down	1	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 0.95

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
