DF11E-12DP-2DSA

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 12POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

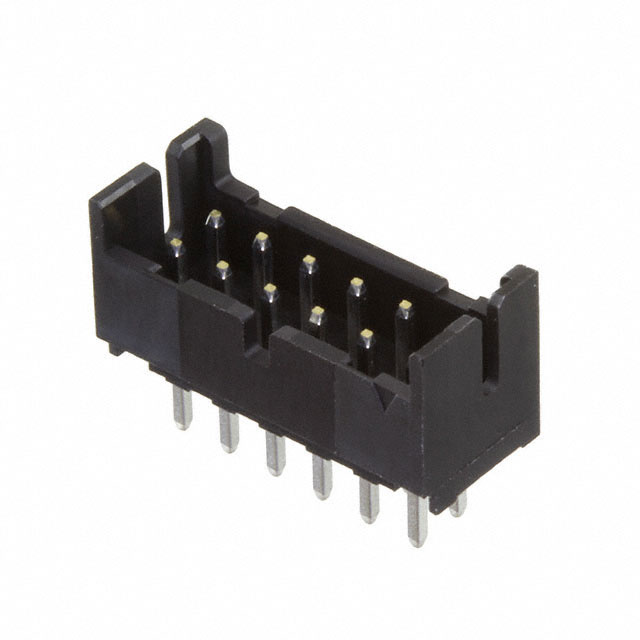

DF11E-12DP-2DSA

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 12POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF11E-12DP-2DSA

Connector Type	Header
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	0.26 in
Insulation Height	6.6 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Overall Contact Length [x]	0.299 in
Overall Contact Length [x]	7.6 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

DF11E Series

Part	Termination	Style	Connector Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Type	Insulation Color	Shrouding	Overall Contact Length [x]	Overall Contact Length [x]	Current Rating (Amps)	Material Flammability Rating	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Shape	Insulation Material	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating
Hirose Electric USA, Inc. DF11E-14DP-2DSA	Solder	Board to Board Cable	Header	Male Pin	-30 ░C	85 °C	250 VDC	Through Hole	Black	Shrouded - 4 Wall	0.299 in	7.6 mm	2 A	UL94 V-0	14	0.079 in	2 mm	Brass	Detent Lock	0.118 in	3 mm	2	All	0.26 in	6.6 mm	Square	Nylon Polyamide (PA)	3 mm	0.118 in	0.079 in	2 mm
Hirose Electric USA, Inc. DF11E-26DP-2DSA	Solder	Board to Board Cable	Header	Male Pin	-30 ░C	85 °C	250 VDC	Through Hole	Black	Shrouded - 4 Wall	0.299 in	7.6 mm	2 A	UL94 V-0	26	0.079 in	2 mm	Brass	Detent Lock	0.118 in	3 mm	2	All	0.26 in	6.6 mm	Square	Nylon Polyamide (PA)	3 mm	0.118 in	0.079 in	2 mm
Hirose Electric USA, Inc. DF11E-18DP-2DSA	Solder	Board to Board Cable	Header	Male Pin	-30 ░C	85 °C	250 VDC	Through Hole	Black	Shrouded - 4 Wall	0.299 in	7.6 mm	2 A	UL94 V-0	18	0.079 in	2 mm	Brass	Detent Lock	0.118 in	3 mm	2	All	0.26 in	6.6 mm	Square	Nylon Polyamide (PA)	3 mm	0.118 in	0.079 in	2 mm
Hirose Electric USA, Inc. DF11E-12DP-2DSA	Solder	Board to Board Cable	Header	Male Pin	-30 ░C	85 °C	250 VDC	Through Hole	Black	Shrouded - 4 Wall	0.299 in	7.6 mm	2 A	UL94 V-0	12	0.079 in	2 mm	Brass	Detent Lock	0.118 in	3 mm	2	All	0.26 in	6.6 mm	Square	Nylon Polyamide (PA)	3 mm	0.118 in	0.079 in	2 mm
Hirose Electric USA, Inc. DF11E-20DP-2DSA(10)
Hirose Electric USA, Inc. DF11E-20DP-2DSA	Solder	Board to Board Cable	Header	Male Pin	-30 ░C	85 °C	250 VDC	Through Hole	Black	Shrouded - 4 Wall	0.299 in	7.6 mm	2 A	UL94 V-0	20	0.079 in	2 mm	Brass	Detent Lock	0.118 in	3 mm	2	All	0.26 in	6.6 mm	Square	Nylon Polyamide (PA)	3 mm	0.118 in	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF11E Series

Connector Header Through Hole 12 position 0.079" (2.00mm)

Documents

Technical documentation and resources
