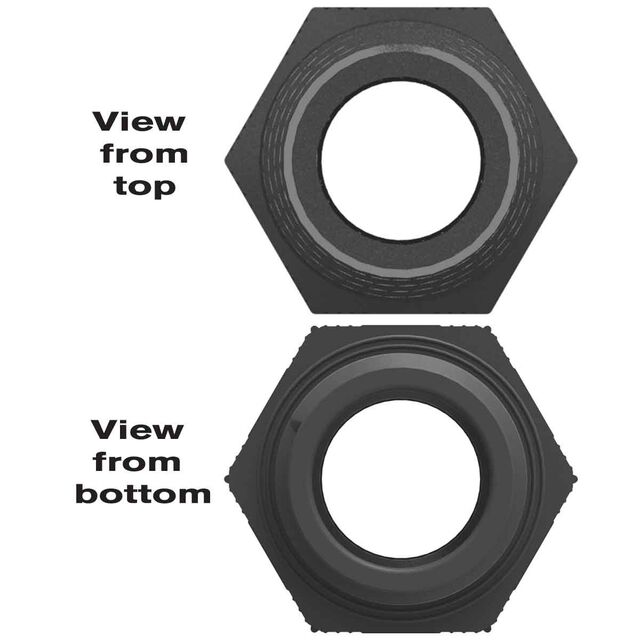

FMB-20L

Active

SAB North America

CABLE GLAND 6-12MM M20 POLYAMIDE

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 6-12MM M20 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	FMB-20L

Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Panel Hole Size	0.787 in
Panel Hole Size	20 mm
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M20x1.5
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Color	Type	Thread Size	Ingress Protection	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
SAB North America FMB-20L	0.472 in	12 mm	100 °C	-20 C	0.591 in	15 mm	Black	Cable Gland	M20x1.5	IP68 - Dust Tight Waterproof	0.787 in	20 mm	6 mm	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 M20x1.5 Black
