C1203.18.01

Active

Prysmian Group

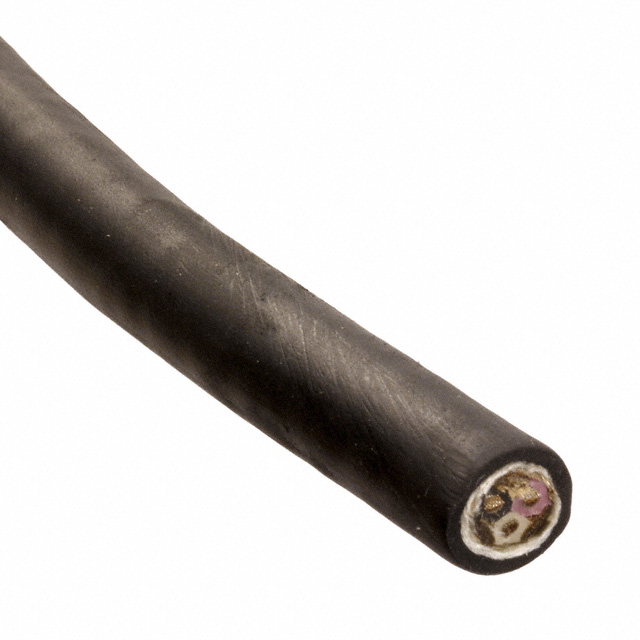

CABLE 3COND 18AWG BLK SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 18AWG BLK SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C1203.18.01

Cable Type	Multi-Conductor
Conductor Insulation	Rubber
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	0.305 in
Jacket (Insulation) Diameter [diameter]	7.75 mm
Jacket (Insulation) Material	Carolprene
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Material	Shield Material	Usage	Length [x]	Length [x]	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Wire Gauge	Conductor Insulation	Length	Shield Coverage	Length
Prysmian Group C1203.18.01	Braid	-20 C	60 °C	Black	Carolprene	Copper Tinned	Communication Control	500 '	152.4 m	3	0.889 mm	0.035 in	Copper Tinned	Multi-Conductor	41 strands	34 AWG	0.305 in	7.75 mm	300 V	18 AWG	Rubber
Prysmian Group C1203.41.01	Braid	-25 °C	60 °C	Black	Carolprene	Copper Tinned	Communication Control	50 ft 100 ft	30.5 m	3	0.889 mm	0.035 in	Copper Tinned	Multi-Conductor	41 strands	34 AWG	0.305 in	7.75 mm	300 V	18 AWG	Rubber	15.24 m 304.8 m	80 %	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG Braid 500.0' (152.4m)
