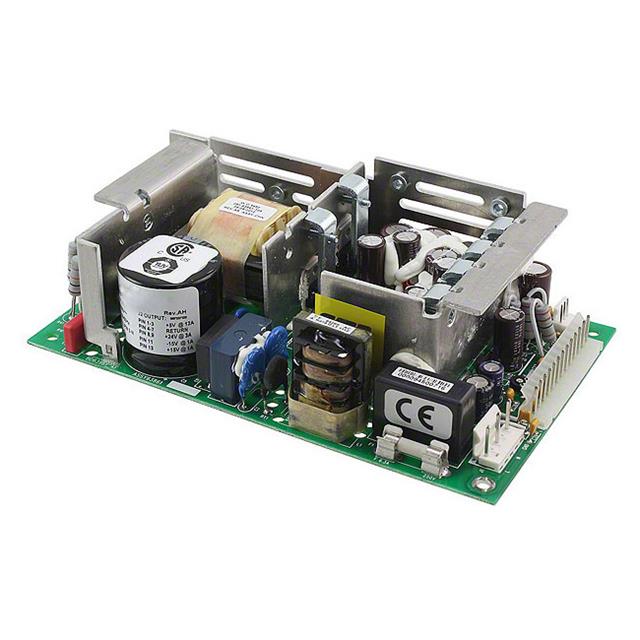

MAP110-1024G

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 24V/28V 3.8A/3.2A 110W 19-PIN

Deep-Dive with AI

Search across all available documentation for this part.

MAP110-1024G

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 24V/28V 3.8A/3.2A 110W 19-PIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MAP110-1024G

Applications	ITE (Commercial)
Approval Agency	cCSAus, CE, CB
Current - Output 1	3.8 A
Efficiency	80 %
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	120 W, 90 W
Size / Dimension [x]	177.8 mm
Size / Dimension [x]	7 "
Size / Dimension [y]	109.2 mm
Size / Dimension [y]	4.3 in
Size / Dimension [z]	50 mm
Size / Dimension [z]	1.97 "
Type	Open Frame
Voltage - Isolation	4.242 kV
Voltage - Output 1	24 V

MAP110 Series

Part	Operating Temperature [Max]	Power (Watts)	Voltage - Output 1	Approval Agency	Current - Output 2	Efficiency	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Applications	Type	Number of Outputs	Current - Output 1	Voltage - Output 2	Voltage - Output 4	Features	Voltage - Isolation	Voltage - Output 3	Current - Output 4
EOS Power India Private Ltd MAP110-4000	70 °C	80 W 110 W	5 V	CB cCSAus CE	5 A	80 %	Chassis Mount	109.2 mm	4.3 in	50 mm	1.97 "	177.8 mm	7 "	ITE (Commercial)	Open Frame	4	12 A	12 V	-5 V	Adjustable Output Remote Sense Universal Input	4.242 kV	-12 V	1 A
EOS Power India Private Ltd MAP110-4004G	70 °C	80 W 110 W	5 V	CB cCSAus CE	3 A	80 %	Chassis Mount	109.2 mm	4.3 in	50 mm	1.97 "	177.8 mm	7 "	ITE (Commercial)	Open Frame	4	12 A	24 V	15 V	Adjustable Output Remote Sense Universal Input	4.242 kV	-15 V	1 A
EOS Power India Private Ltd MAP110-4011	70 °C	80 W 110 W	5 V	CB cCSAus CE	5 A	80 %	Chassis Mount	109.2 mm	4.3 in	50 mm	1.97 "	177.8 mm	7 "	ITE (Commercial)	Open Frame	4	12 A	12 V	24 V	Adjustable Output Remote Sense Universal Input	4.242 kV	-12 V	1 A
EOS Power India Private Ltd MAP110-4002G	70 °C	60 W 110 W	5 V	CB cCSAus CE	5 A	80 %	Chassis Mount	109.2 mm	4.3 in	50 mm	1.97 "	177.8 mm	7 "	ITE (Commercial)	Open Frame	4	12 A	12 V	12 V	Adjustable Output Remote Sense Universal Input	4.242 kV	-12 V	1 A
EOS Power India Private Ltd MAP110-1012	70 °C	90 W 120 W	12 V	CB cCSAus CE		80 %	Chassis Mount	109.2 mm	4.3 in	50 mm	1.97 "	177.8 mm	7 "	ITE (Commercial)	Open Frame	1				Adjustable Output Remote Sense Universal Input	4.242 kV
EOS Power India Private Ltd MAP110-4004C	70 °C	60 W 110 W	5 V	CB cCSAus CE	3 A	80 %	Chassis Mount	115 mm	4.5 in	61 mm	2.4 in	183 mm	7.2 in	ITE (Commercial)	Enclosed	4	12 A	24 V	15 V	Adjustable Output Remote Sense Universal Input	4.242 kV	-15 V	1 A
EOS Power India Private Ltd MAP110-4200G	70 °C	80 W 110 W	12 V	CB cCSAus CE	4 A	80 %	Chassis Mount	109.2 mm	4.3 in	50 mm	1.97 "	177.8 mm	7 "	ITE (Commercial)	Open Frame	4	5 A	24 V	5 V	Adjustable Output Remote Sense Universal Input	4.242 kV	-12 V	2 A
EOS Power India Private Ltd MAP110-1024	70 °C	90 W 120 W	24 V	CB cCSAus CE		80 %	Chassis Mount	109.2 mm	4.3 in	50 mm	1.97 "	177.8 mm	7 "	ITE (Commercial)	Open Frame	1	3.8 A			Adjustable Output Remote Sense Universal Input	4.242 kV
EOS Power India Private Ltd MAP110-4004	70 °C	80 W 110 W	5 V	CB cCSAus CE	3 A	80 %	Chassis Mount	109.2 mm	4.3 in	50 mm	1.97 "	177.8 mm	7 "	ITE (Commercial)	Open Frame	4	12 A	24 V	15 V	Adjustable Output Remote Sense Universal Input	4.242 kV	-15 V	1 A
EOS Power India Private Ltd MAP110-1024G	70 °C	90 W 120 W	24 V	CB cCSAus CE		80 %	Chassis Mount	109.2 mm	4.3 in	50 mm	1.97 "	177.8 mm	7 "	ITE (Commercial)	Open Frame	1	3.8 A			Adjustable Output Remote Sense Universal Input	4.242 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 286.19
		20	$ 268.31

Description

General part information

MAP110 Series

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
