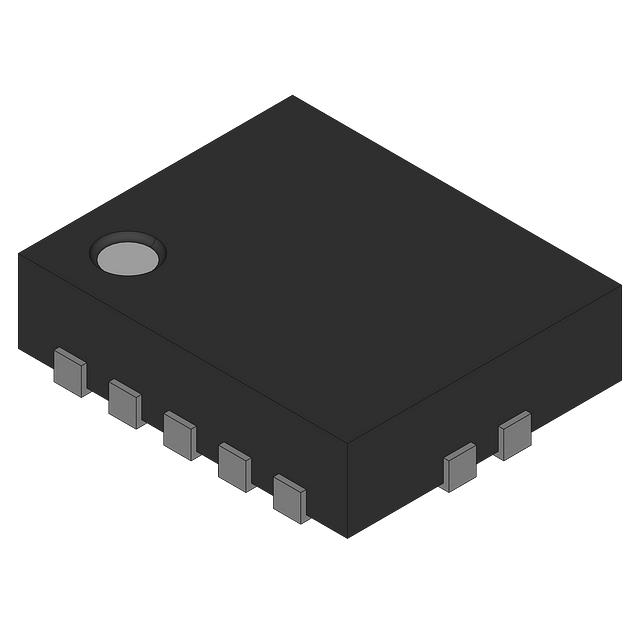

74AHCT02BQ,115
ActiveFreescale Semiconductor - NXP
IC GATE NOR 4CH 2-INP 14DHVQFN
Deep-Dive with AI
Search across all available documentation for this part.
74AHCT02BQ,115
ActiveFreescale Semiconductor - NXP
IC GATE NOR 4CH 2-INP 14DHVQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74AHCT02BQ,115 |
|---|---|
| Current - Output High, Low [custom] | 8 mA |
| Current - Output High, Low [custom] | 8 mA |
| Input Logic Level - Low | 0.8 V |
| Logic Type | NOR Gate |
| Max Propagation Delay @ V, Max CL | 7.5 ns |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | 14-DHVQFN (2.5x3) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2174 | $ 0.14 | |
| 2649 | $ 0.11 | |||
| Cut Tape (CT) | 1 | $ 0.50 | ||
| 10 | $ 0.40 | |||
| 25 | $ 0.37 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.50 | ||
| 10 | $ 0.40 | |||
| 25 | $ 0.37 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 3000 | $ 0.15 | ||
Description
General part information
74AHCT02 Series
NOR Gate IC 4 Channel 14-DHVQFN (2.5x3)
Documents
Technical documentation and resources
No documents available
