09140173101

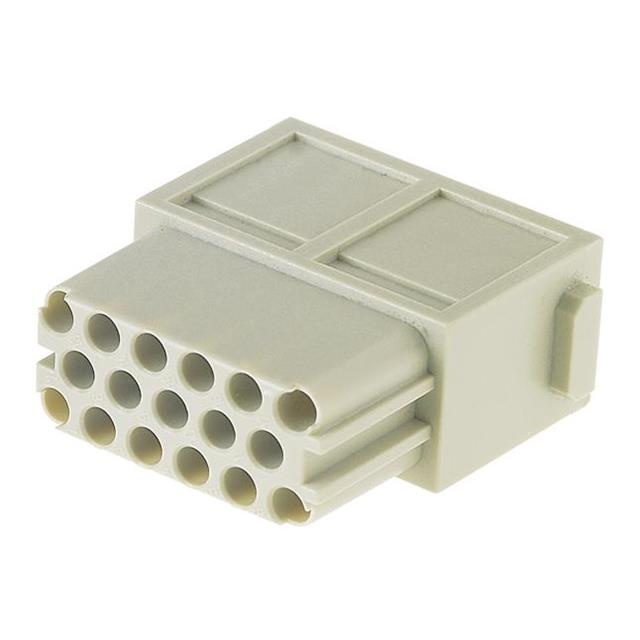

ActiveHEAVY DUTY CONNECTOR, SOCKET MODULE, LESS CONTACTS, HAN-MODULAR DDD SERIES, MODULE, 17 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
09140173101
ActiveHEAVY DUTY CONNECTOR, SOCKET MODULE, LESS CONTACTS, HAN-MODULAR DDD SERIES, MODULE, 17 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09140173101 |
|---|---|
| Color | Gray |
| Connector Type | Module without Contacts |
| Contact Type | Han® D |
| Current Rating (Amps) | 10 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09140173 Series
The 09140173101 is a 17-position 3-row Han DDD Female Module, 0.14 to 2.5mm² wire cross section area with crimp terminals. Made polycarbonate, RAL 7032 (light grey) color. The Han-Modular® series is a heavy duty connector system that provides users with a very high degree of interconnect design and manufacturing flexibility. In addition to connections of electrical power and signals it is also possible to make pluggable connections for both optical and gaseous mediums with the Han-Modular® system.
