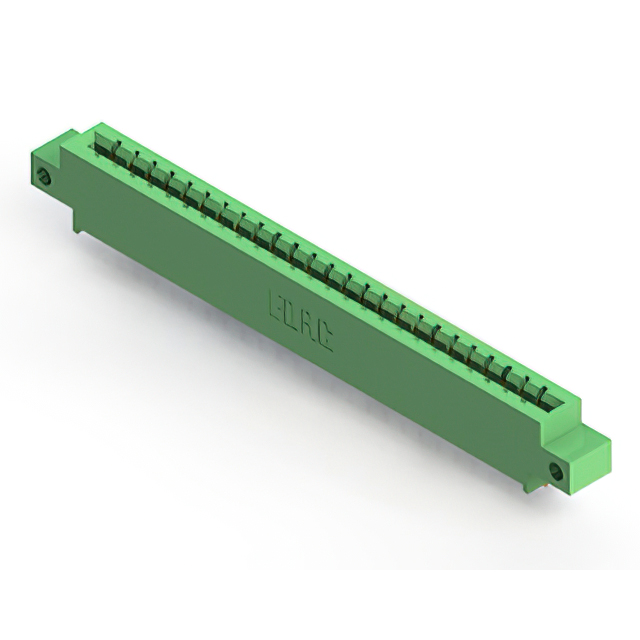

833-025-521-612
ActiveEDAC Inc.
CONN EDGE SGL FMALE 25POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-025-521-612
ActiveEDAC Inc.
CONN EDGE SGL FMALE 25POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-025-521-612 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
833-025 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Number of Positions/Bay/Row [custom] | Mounting Type | Number of Rows | Card Type | Pitch [x] | Pitch [x] | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Type | Gender | Read Out | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Termination | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 25 | Through Hole | 1 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Copper Alloy | Cantilever | Female | Single | Green | 10 Áin | 0.25 Ám | Gold | Solder | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 25 | Through Hole | 1 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Copper Alloy | Cantilever | Female | Single | Green | 10 Áin | 0.25 Ám | Gold | Wire Wrap | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 25 | Through Hole | 1 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Copper Alloy | Cantilever | Female | Single | Green | 10 Áin | 0.25 Ám | Gold | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 25 | Through Hole Right Angle | 1 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Copper Alloy | Cantilever | Female | Single | Green | 10 Áin | 0.25 Ám | Gold | Solder | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 25 | Through Hole | 1 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Copper Alloy | Cantilever | Female | Single | Green | 10 Áin | 0.25 Ám | Gold | Wire Wrap | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 25 | Through Hole | 1 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Copper Alloy | Cantilever | Female | Single | Green | 10 Áin | 0.25 Ám | Gold | Solder | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 25 | Through Hole | 1 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Copper Alloy | Cantilever | Female | Single | Green | 10 Áin | 0.25 Ám | Gold | Solder | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 25 | Through Hole Right Angle | 1 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Copper Alloy | Cantilever | Female | Single | Green | 10 Áin | 0.25 Ám | Gold | Solder | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 25 | Through Hole Right Angle | 1 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Copper Alloy | Cantilever | Female | Single | Green | 10 Áin | 0.25 Ám | Gold | Solder | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 25 | Through Hole | 1 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Copper Alloy | Cantilever | Female | Single | Green | 10 Áin | 0.25 Ám | Gold | Wire Wrap | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-025 Series
25 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
