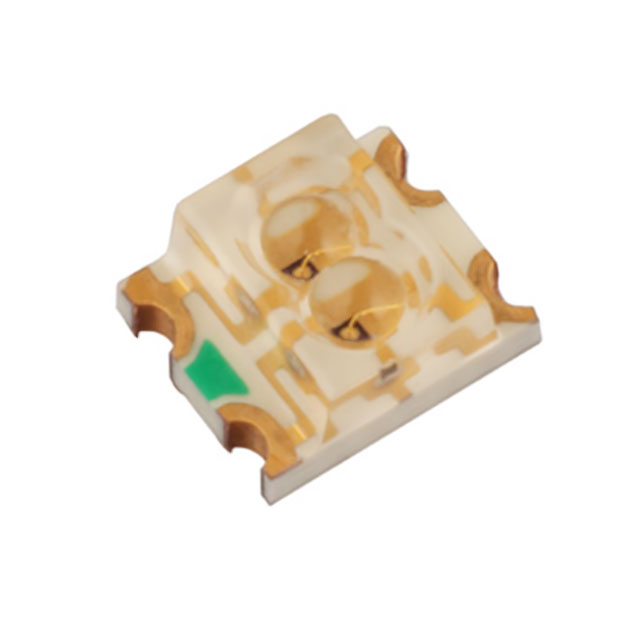

DRD1204W-TR
ActiveStanley Electric Co
DUAL COLOR LED, RED/YELLOW GREEN, WATER CLEAR,
Deep-Dive with AI
Search across all available documentation for this part.
DRD1204W-TR
ActiveStanley Electric Co
DUAL COLOR LED, RED/YELLOW GREEN, WATER CLEAR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRD1204W-TR |
|---|---|
| Color | Red, Yellow-Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] | 1.9 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.5 mm |
| Lens Size [y] | 2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 1208 |
| Package / Case | 3020 Metric |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2.5 mm |
| Voltage - Forward (Vf) (Typ) | 2 V, 2 V |
| Wavelength - Dominant | 572 nm, 626 nm |
| Wavelength - Peak | 635 nm, 575 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 2500 | $ 0.06 | ||
| 5000 | $ 0.05 | |||
| 12500 | $ 0.05 | |||
Description
General part information
DRD1204 Series
Red, Yellow-Green 626nm Red, 572nm Yellow-Green LED Indication - Discrete 2V Red, 2V Yellow-Green 1208 (3020 Metric)
Documents
Technical documentation and resources
No documents available
