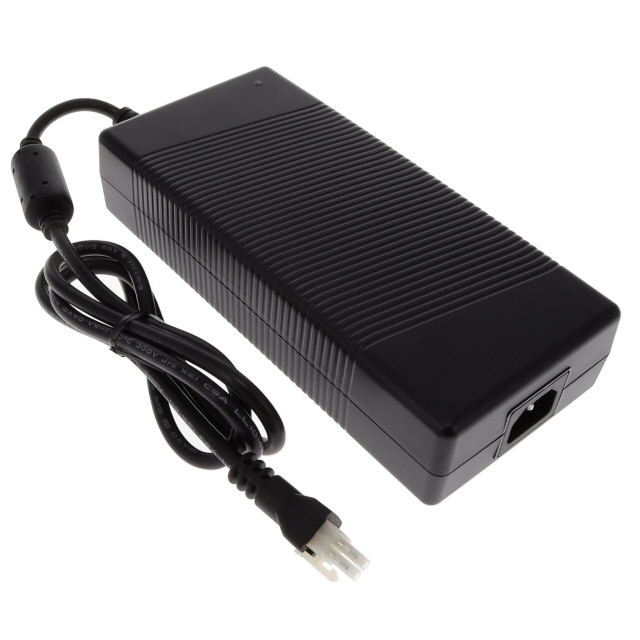

L6R250DM-480-C14

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 48V 250W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R250DM-480-C14

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 48V 250W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L6R250DM-480-C14

Applications	Medical
Approval Agency	TUV, cULus, EN, FCC, CE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	5.21 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Rectangular, 6 Position
Power (Watts)	250 W
Region Utilized	International
Size / Dimension [x]	204 mm
Size / Dimension [x]	8.03 "
Size / Dimension [y]	94 mm
Size / Dimension [y]	3.7 in
Size / Dimension [z]	1.71 in
Size / Dimension [z]	43.5 mm
Standard Number	60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V

L6R250 Series

Part	Form	Cord Length	Cord Length	Region Utilized	Approval Agency	Power (Watts)	Weight	Weight	No Load Power Consumption [Max]	Voltage - Output	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Standard Number	Input Connector	Output Connector	Applications	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Cord Length
Tri-Mag, LLC L6R250D-120-C6	Desktop (Class I)	1.2 m	47.2 in	International	CE cULus EN FCC TUV	240 W	1 kg	2.3 lbs	150 mW	12 V	CoC Tier 2 Level VI	90 VAC	264 VAC	Cord	62368-1	IEC 320-C6	Rectangular 6 Position	ITE (Commercial)	20 A	94 mm	1.71 in	43.6 mm	3.7 in	8.03 "	204 mm	40 °C
Tri-Mag, LLC L6R250D-480-C6	Desktop (Class I)		1.5 m	International	CE cULus EN FCC TUV	250 W	1 kg	2.3 lbs	150 mW	48 V	CoC Tier 2 Level VI	90 VAC	264 VAC	Cord	62368-1	IEC 320-C6	Rectangular 6 Position	ITE (Commercial)	5.2 A	94 mm	1.71 in	43.6 mm	3.7 in	8.03 "	204 mm	40 °C	59 in
Tri-Mag, LLC L6R250DM-480-C14	Desktop (Class I)		1.5 m	International	CE cULus EN FCC TUV	250 W			150 mW	48 V	Level VI	90 VAC	264 VAC	Cord	60601-1	IEC 320-C14	Rectangular 6 Position	Medical	5.21 A	94 mm	1.71 in	43.5 mm	3.7 in	8.03 "	204 mm	40 °C	59 in
Tri-Mag, LLC L6R250D-120	Desktop (Class I)	1.2 m	47.2 in	International	CE cULus EN FCC TUV	240 W	1 kg	2.3 lbs	150 mW	12 V	CoC Tier 2 Level VI	90 VAC	264 VAC	Cord	62368-1	IEC 320-C14	Rectangular 6 Position	ITE (Commercial)	20 A	94 mm	1.71 in	43.6 mm	3.7 in	8.03 "	204 mm	40 °C
Tri-Mag, LLC L6R250D-190-C6	Desktop (Class I)		1.5 m	International	CE cULus EN FCC TUV	250 W	1 kg	2.3 lbs	150 mW	19 V	CoC Tier 2 Level VI	90 VAC	264 VAC	Cord	62368-1	IEC 320-C6	Rectangular 6 Position	ITE (Commercial)	13.2 A	94 mm	1.71 in	43.6 mm	3.7 in	8.03 "	204 mm	40 °C	59 in
Tri-Mag, LLC L6R250D-240-C6	Desktop (Class I)		1.5 m	International	CE cULus EN FCC TUV	250 W	1 kg	2.3 lbs	150 mW	24 V	CoC Tier 2 Level VI	90 VAC	264 VAC	Cord	62368-1	IEC 320-C6	Rectangular 6 Position	ITE (Commercial)	10.42 A	94 mm	1.71 in	43.6 mm	3.7 in	8.03 "	204 mm	40 °C	59 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	250	$ 142.59

Description

General part information

L6R250 Series

48V 250 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
