SSB1-24F01-3580-00

Active

New Energy

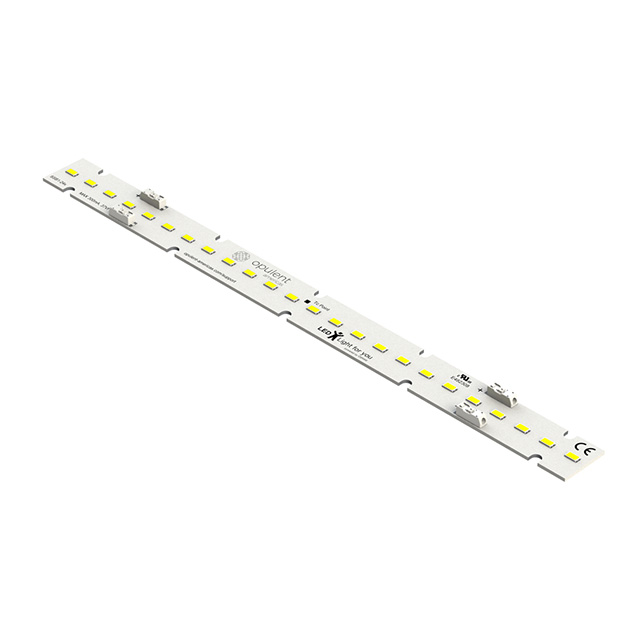

LED MOD SSB1 WHT LNR STRP 3500K

Search across all available documentation for this part.

Active

New Energy

LED MOD SSB1 WHT LNR STRP 3500K

Technical Specifications

Parameters and characteristics for this part

Specification	SSB1-24F01-3580-00

CCT (K)	3500 K
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	300 mA
Current - Test	200 mA
Height [z]	6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	164 lm/W
Luminous Flux @ Current/Temperature	1140 lm
Size / Dimension [x]	279.5 mm
Size / Dimension [y]	22 mm
Temperature - Test	50 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	34.4 V

Part	Color	CCT (K)	Lumens/Watt @ Current - Test	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Luminous Flux @ Current/Temperature	Configuration	CRI (Color Rendering Index)	Type	Lens Type	Temperature - Test	Current - Max [Max]	Voltage - Forward (Vf) (Typ)
New Energy SSB1-24F01-3580-00	Warm White	3500 K	164 lm/W	200 mA	22 mm	279.5 mm	6 mm	1140 lm	Linear Light Strip	80	LED Module	Flat	50 °C	300 mA	34.4 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.36

General part information

LED Lighting COBs Engines Modules LED Module SSB1 White, Warm Linear Light Strip
