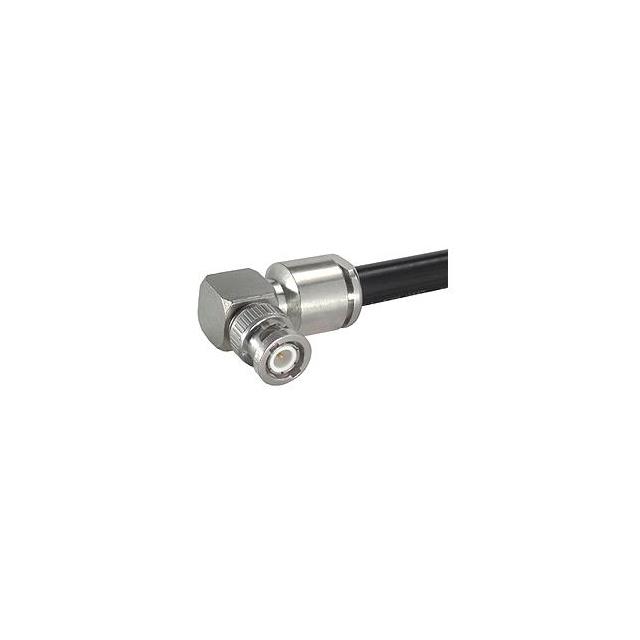

16_BNC-50-7-6/133_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

16_BNC-50-7-6/133_NE

Technical Specifications

Parameters and characteristics for this part

Specification	16_BNC-50-7-6/133_NE

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Body Finish	Dielectric Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Connector Style	Center Contact Plating	Number of Ports	Contact Termination	Shield Termination	Voltage Rating	Cable Group	Fastening Type	Mounting Type	Frequency - Max [Max]	Body Material	Impedance	Housing Color	Center Contact Material
Huber+Suhner, Inc. 16_BNC-50-2-5/133_NE	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	-65 ░C	165 °C	Male Pin Plug	BNC	Gold	1	Solder	Crimp	500 V	RD-316	Bayonet Lock	Free Hanging (In-Line) Right Angle	4 GHz	Brass	50 Ohms	Silver	Brass
Huber+Suhner, Inc. 16_BNC-50-7-6/133_NE	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	-65 ░C	165 °C	Male Pin Plug	BNC	Gold	1	Solder	Crimp			Bayonet Lock	Free Hanging (In-Line) Right Angle	4 GHz	Brass	50 Ohms	Gold	Brass
Huber+Suhner, Inc. 16_BNC-50-4-14/12-_NE	Nickel	Polytetrafluoroethylene (PTFE)	500	-60 °C	165 °C	Male Pin Plug	BNC	Gold	1	Crimp	Clamp	500 V	RG-B4C	Bayonet Lock	Free Hanging (In-Line) Right Angle	4 GHz	Brass	50 Ohms	Silver	Beryllium Copper
Huber+Suhner, Inc. 16_BNC-50-3-5/133_NE	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	-65 ░C	165 °C	Male Pin Plug	BNC	Gold	1	Solder	Crimp	500 V	RG-58	Bayonet Lock	Free Hanging (In-Line) Right Angle	4 GHz	Brass	50 Ohms	Silver	Brass
Huber+Suhner, Inc. 16_BNC-50-3-7/133_NE	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	-65 ░C	165 °C	Male Pin Plug	BNC	Gold	1	Solder	Crimp	500 V	223 400 RG-142	Bayonet Lock	Free Hanging (In-Line) Right Angle	4 GHz	Brass	50 Ohms	Silver	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.41

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
