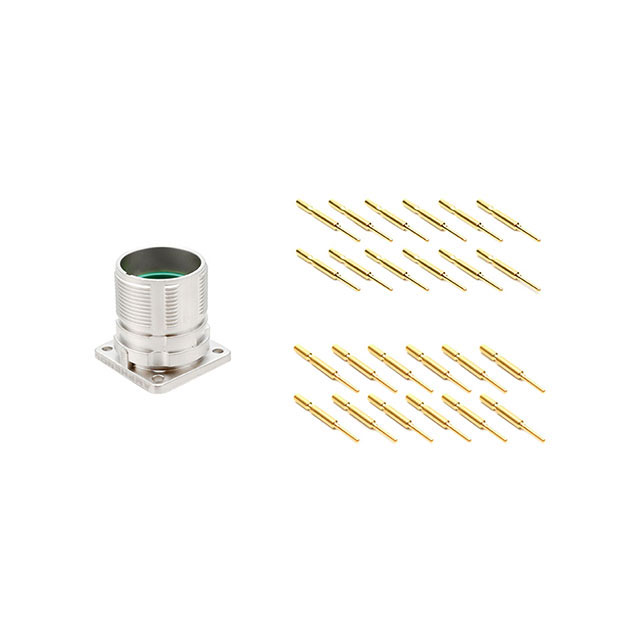

MA2LAP1200-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 12POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 12POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Termination	Contact Finish - Mating	Current Rating (Amps)	Shielding	Shell Size - Insert	Shell Material	Color	Voltage Rating	Number of Positions	Shell Finish	Orientation	Primary Material	Fastening Type	Housing Color	Insert Material	Contact Shape	Contact Type	Number of Positions	Note	Contact Size	Material Flammability Rating	Type
Amphenol Sine Systems Corp MA2LAP1200-KIT	Male Pins Receptacle	IP67 - Dust Tight Waterproof	-20 C	130 °C	Flange	Crimp	Gold	10 A	Shielded	M23-12	Zinc Die Cast	Silver	160 V	12	Nickel	N	Metal
Amphenol Sine Systems Corp MA2LAP1600	Receptacle Housing	IP67 - Dust Tight Waterproof	-20 C	130 °C	Flange				Shielded	M23-16	Zinc Die Cast				Nickel	N		Push-Twist	Silver	Polyamide (PA66) Nylon 6/6	Circular	Crimp	16	Contacts Not Included	1 mm	UL94 V-0	For Female Sockets or Male Pins
Amphenol Sine Systems Corp MA2LAP1900	Receptacle Housing	IP67 - Dust Tight Waterproof	-20 C	130 °C	Flange				Shielded	M23-19	Zinc Die Cast			19	Nickel	P		Push-Twist	Silver	Polyamide (PA66) Nylon 6/6	Circular	Crimp		Contacts Not Included	1 mm	UL94 V-0	For Female Sockets or Male Pins
Amphenol Sine Systems Corp MA2LAP1700	Receptacle Housing	IP67 - Dust Tight Waterproof	-20 C	130 °C	Flange				Shielded	M23-17	Zinc Die Cast				Nickel	N		Push-Twist	Silver	Polyamide (PA66) Nylon 6/6	Circular	Crimp		Contacts Not Included	1 mm	UL94 V-0	For Female Sockets or Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Male Pins Crimp
