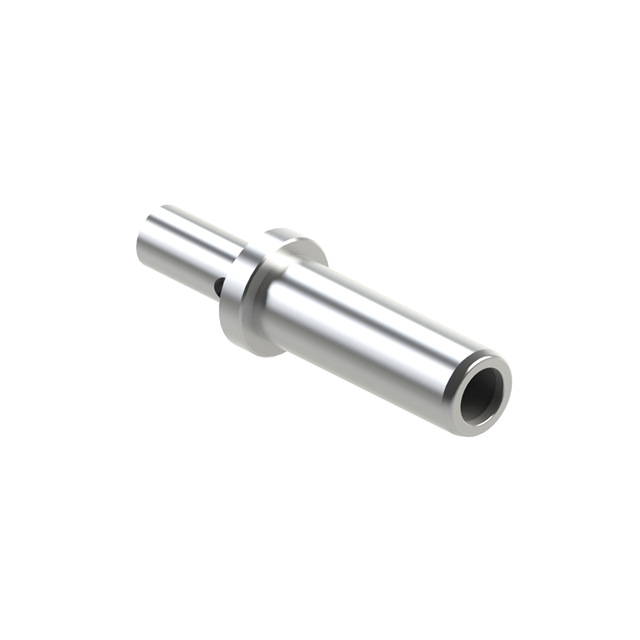

SC000706
ActiveAmphenol Sine Systems Corp
2.4MM, FEMALE SURESOCKET MACHINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC000706
ActiveAmphenol Sine Systems Corp
2.4MM, FEMALE SURESOCKET MACHINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC000706 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Machined |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.23 | |
| 10 | $ 2.94 | |||
| 25 | $ 2.78 | |||
| 50 | $ 2.71 | |||
| 200 | $ 2.59 | |||
| 400 | $ 2.26 | |||
| 600 | $ 2.20 | |||
| 1000 | $ 1.87 | |||
| 2600 | $ 1.75 | |||
Description
General part information
SC00070 Series
Socket Contact Gold 18-20 AWG Crimp Machined
