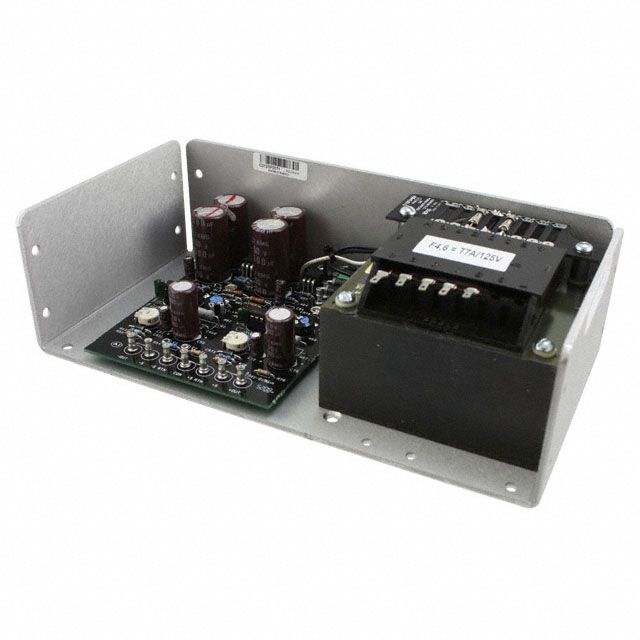

HCC512-A+G

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 5V 12V 60W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 5V 12V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	HCC512-A+G

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	6 A
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	9.38 "
Size / Dimension [x]	238.3 mm
Size / Dimension [y]	4.88 in
Size / Dimension [y]	124 mm
Size / Dimension [z]	2.75 in
Size / Dimension [z]	69.9 mm
Type	Linear
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	5 V
Voltage - Output 2	12 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current - Output 1	Voltage - Output 2	Number of Outputs	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Mounting Type	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1
SL POWER / Advanced Energy HCC512-A+G	70 °C	0 °C	CE cURus TUV	6 A	12 V	2	Adjustable Output Remote Sense Universal Input	4.88 in	9.38 "	2.75 in	238.3 mm	69.9 mm	124 mm	Linear	Chassis Mount	ITE (Commercial)	240 VAC	100 VAC	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear AC DC Converters 2 Output 5V 12V 100 ~ 240 VAC Input
