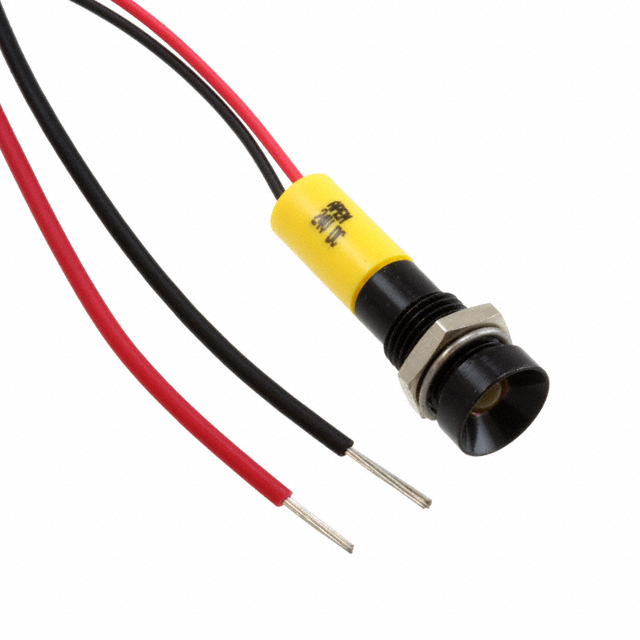

Q8R3BXXY24E

Active

APEM

LED INDICATOR 8MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

LED INDICATOR 8MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	Q8R3BXXY24E

Ingress Protection	IP67
Lamp Color	Yellow
Lens Color	Yellow
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	50 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Viewing Angle	100 °
Voltage	24 V

Part	Voltage	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Type	Ratings	Ingress Protection	Lens Style	Lamp Color	Viewing Angle	Millicandela Rating	Panel Cutout Shape	Lens Color	Lens Transparency	Termination Style	Lens Size	Lens Size
APEM Q8R3BXXY24E	24 V	0.31 in	7.87 mm	LED	DC	IP67	Round with Domed Top	Yellow	100 °	50 mcd	Round	Yellow	Diffused	Wire Leads - 7.87" (200.00mm)	T-1 3/4	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Yellow Diffused 100° 24V 20mA Wire Leads - 7.87" (200.00mm)

Technical documentation and resources
