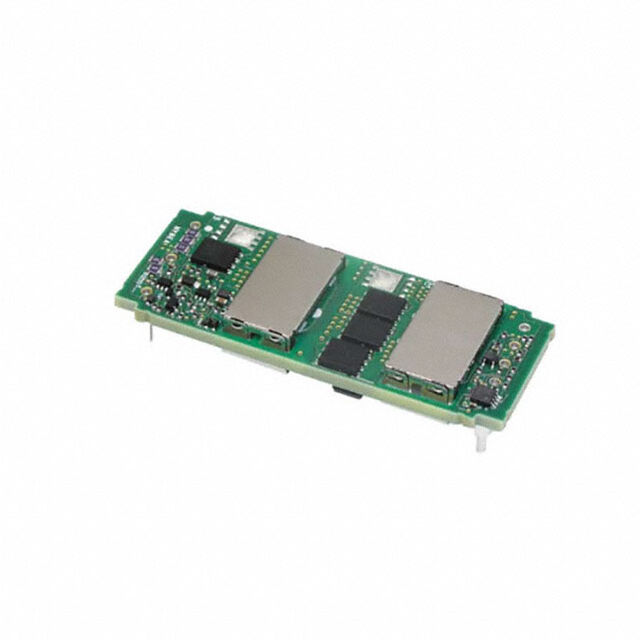

MYBSC0128CABT
ObsoleteMurata Power Solutions Inc.
MODULE DC-DC 48VIN 1-OUT 12V 8.3A 100W 8-PIN 1/16-BRICK T/R
Deep-Dive with AI
Search across all available documentation for this part.
MYBSC0128CABT
ObsoleteMurata Power Solutions Inc.
MODULE DC-DC 48VIN 1-OUT 12V 8.3A 100W 8-PIN 1/16-BRICK T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MYBSC0128CABT |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 8.3 A |
| Efficiency | 92.5 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Sixteenth Brick |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [y] | 23.2 mm |
| Size / Dimension [y] | 0.91 in |
| Size / Dimension [z] | 0.41 " |
| Size / Dimension [z] | 10.4 mm |
| Supplier Device Package | Sixteenth Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MYBSC012 Series
MODULE DC-DC 48VIN 1-OUT 12V 8.3A 100W 8-PIN 1/16-BRICK T/R
Documents
Technical documentation and resources
No documents available
