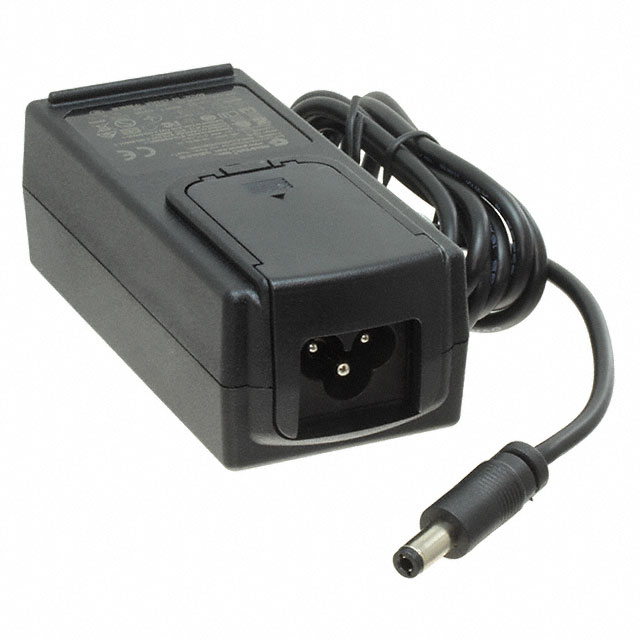

RR9LE3000CCP-IMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 12V 36W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 12V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	RR9LE3000CCP-IMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, ETL, CCC, FCC, RCM, UKRSepro, LPS, S-Mark, cETLus, CE, CB, EAC, VCCI
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	3 A
Efficiency	Level VI
Form	Wall Mount (Class I), Desktop
Input Type	Cord, Multi-Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	4 in
Size / Dimension [x]	101.7 mm
Size / Dimension [y]	46.5 mm
Size / Dimension [y]	1.83 in
Size / Dimension [z]	38.2 mm
Size / Dimension [z]	1.5 "
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [z]	Input Type	Cord Length	Cord Length	Region Utilized	Efficiency	Current - Output (Max) [Max]	Applications	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Form	Polarization	Voltage - Output	No Load Power Consumption [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
GlobTek, Inc. RR9LE3000CCP-IMR6B	36 W	Barrel Plug	2.1 mm 5.5 mm	11 mm	Cord Multi-Blade	1.2 m	47.2 in	International	Level VI	3 A	Household Appliances ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro VCCI	90 VAC	264 VAC	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	-20 C	40 °C	Desktop Wall Mount (Class I)	Positive Center	12 V	75 mW	38.2 mm	4 in	46.5 mm	1.83 in	101.7 mm	1.5 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 36 W AC/DC External Desktop, Wall Mount (Class I) Adapter Cord, Multi-Blade (Sold Separately) Input
