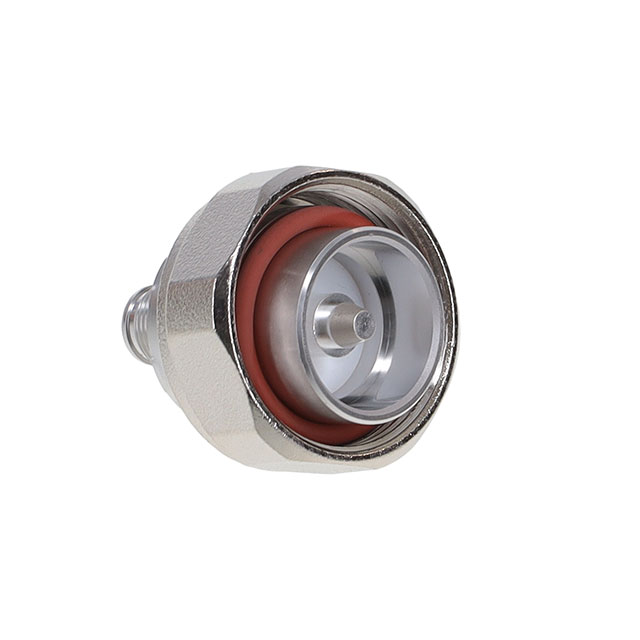

60S189-K00N1

Active

Rosenberger

COAX ADAPT 7/16 TO NEX10

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT 7/16 TO NEX10

Technical Specifications

Parameters and characteristics for this part

Specification	60S189-K00N1

Adapter Series	NEX10, 7/16
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	7/16 Plug, Male Pin
Convert To (Adapter End)	NEX10 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	8.3 GHz
Impedance	50 Ohms
Insertion Loss	0.14 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Mating Cycles	Body Finish	Convert To (Adapter End)	Style	Center Contact Material	Impedance	Adapter Series	Body Material	Fastening Type	Conversion Type	Adapter Type	Insertion Loss	Dielectric Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Center Contact Plating	Mounting Type
Rosenberger 60S189-K00N1	500	White Bronze	Female Socket NEX10 Jack	Straight	Beryllium Copper Brass	50 Ohms	7/16 NEX10	Brass	Snap-On Threaded	Between Series	Plug to Jack	0.14 dB	Polytetrafluoroethylene (PTFE)	8.3 GHz	-55 °C	125 °C	7/16 Plug Male Pin	Silver	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 7/16 Plug, Male Pin To NEX10 Jack, Female Socket 50 Ohms
