M300-FC20605F2-0450L

Active

Harwin Inc.

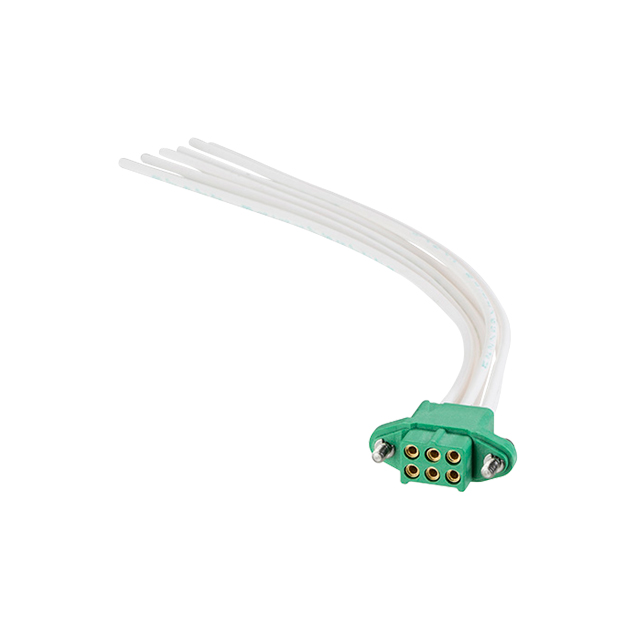

3+3 POS. FEMALE DIL 20AWG CABLE ASSEMBLY, 450MM, SINGLE-END, JACKSCREWS

Search across all available documentation for this part.

Active

Harwin Inc.

3+3 POS. FEMALE DIL 20AWG CABLE ASSEMBLY, 450MM, SINGLE-END, JACKSCREWS

Technical Specifications

Parameters and characteristics for this part

Specification	M300-FC20605F2-0450L

Cable Termination	Crimp
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Features	Screw Lock, Polarizing Key
Length [x]	17.76 in
Length [x]	450 mm
Number of Positions	6
Number of Rows	2
Pitch - Connector	0.118 in
Pitch - Connector	3 mm
Shielding	Unshielded

Part	Cable Termination	Pitch - Connector	Pitch - Connector	Connector Type	Contact Finish	Number of Rows	Shielding	Length [x]	Length [x]	Length [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Features
Harwin Inc. M300-FC21005F2-0300L	Crimp	0.118 in	3 mm	Socket to Individual Wire Leads	Gold	2	Unshielded	0.984 '	11.81 "	300 mm	10	5.9 µin	0.15 µm	Polarizing Key Screw Lock
Harwin Inc. M300-FC20605F2-0450L	Crimp	0.118 in	3 mm	Socket to Individual Wire Leads	Gold	2	Unshielded	17.76 in		450 mm	6	5.9 µin	0.15 µm	Polarizing Key Screw Lock
Harwin Inc. M300-FC20605F2-0300L	Crimp	0.118 in	3 mm	Socket to Individual Wire Leads	Gold	2	Unshielded	0.984 '	11.81 "	300 mm	6	5.9 µin	0.15 µm	Polarizing Key Screw Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 31.17
Newark	Each	100	$ 37.68
		250	$ 36.40

General part information

6 Position Cable Assembly Rectangular Socket to Individual Wire Leads 1.48' (450.00mm)
