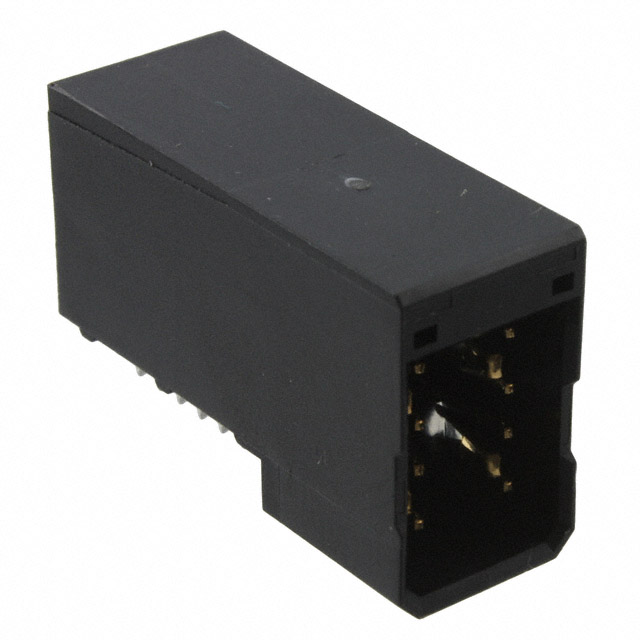

10028918-001LF

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 2P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 2P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10028918-001LF

Color	Black
Connector Style	Blade Power
Connector Type	Male Blades, Header
Connector Usage	Daughtercard
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	2 Power
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Termination	Press-Fit

Part	Connector Usage	Number of Positions Loaded	Mounting Type	Contact Finish	Connector Style	Termination	Number of Positions	Color	Material Flammability Rating	Contact Layout, Typical	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Current Rating (Amps)	Number of Columns	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating
Amphenol ICC (FCI) 10028918-001LF	Daughtercard	All	Board Edge Right Angle Through Hole	Gold or Gold GXT™	Blade Power	Press-Fit	2	Black	UL94 V-0	2 Power	Board Guide	Header Male Blades	0.76 Ám	30 Áin	1
Amphenol ICC (FCI) 10028918-001	Backplane	All	Board Edge Right Angle Through Hole	Gold or Gold GXT™	Blade Power	Press-Fit	2	Black	UL94 V-0	2 Power	Board Guide	Header Male Blades	0.76 Ám	30 Áin	1	80 A	2	85 °C	-55 °C	150 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Connector Header, Male Blades Board Edge, Through Hole, Right Angle Black Blade Power
