2524-FT

Unknown

3M (TC)

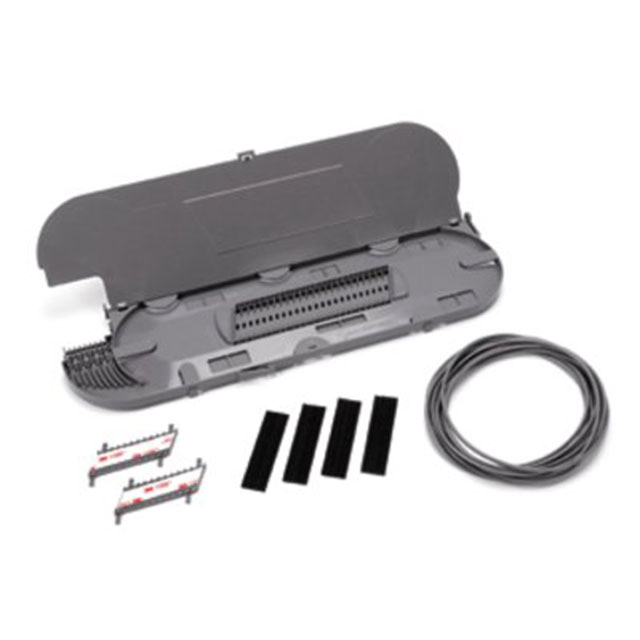

FBR OPTIC SPLICE ORGANIZER TRAY

Deep-Dive with AI

Search across all available documentation for this part.

2524-FT

Unknown

3M (TC)

FBR OPTIC SPLICE ORGANIZER TRAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2524-FT

Features	Snap-on Hinged Cover
Specifications	Protects up to 24 Fibrlok™ Fusion Splices
Specifications [x]	39.37 cm
Specifications [y]	10.8 cm
Type	Fibrlok™ Fusion Splice Organizer Tray

2524 Series

Part	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Post	Connector Type	Contact Shape	Insulation Color	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Fastening Type	Number of Positions Loaded	Features	Insulation Height [z]	Insulation Height [z]	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Shrouding	Number of Rows	Material Flammability Rating	Insulation Material	Style	Type	Specifications [y]	Specifications	Specifications [x]	Insulation Height	Insulation Height
3M (TC) 2524-6002UB	Male Pin	30 Áin	0.76 Ám	Through Hole	Tin-Lead	Header	Square	Black	2.84 mm	0.112 in	105 ░C	-55 °C	24	1.75 A	2.54 mm	0.1 in	Copper Alloy	Push-Pull	All	Keying Slot	9.91 mm	0.39 in	Solder	200 µin	5.08 µm	0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	2	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Board to Board Cable
3M (TC) 2524-FT																				Snap-on Hinged Cover														Fibrlok™ Fusion Splice Organizer Tray	10.8 cm	Protects up to 24 Fibrlok™ Fusion Splices	39.37 cm
3M (TC) 2524-6002UG	Male Pin	15 µin	0.38 µm	Through Hole	Tin-Lead	Header	Square	Black	2.84 mm	0.112 in	105 ░C	-55 °C	24	1.75 A	2.54 mm	0.1 in	Copper Alloy	Push-Pull	All	Keying Slot	9.91 mm	0.39 in	Solder	200 µin	5.08 µm	0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	2	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Board to Board Cable
3M (TC) 2524-5002UG	Male Pin	15 µin	0.38 µm	Through Hole Right Angle	Tin-Lead	Header	Square	Black	2.84 mm	0.112 in	105 ░C	-55 °C	24	1.75 A	2.54 mm	0.1 in	Copper Alloy	Push-Pull	All	Keying Slot			Solder	200 µin	5.08 µm	0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	2	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Board to Board Cable					0.338 in	8.59 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 55.33

Description

General part information

2524 Series

Fiber Optic Fibrlok™ Fusion Splice Organizer Tray Snap-on Hinged Cover

Documents

Technical documentation and resources

No documents available
