G41MC7-P14LCC0-0020

Active

ODU

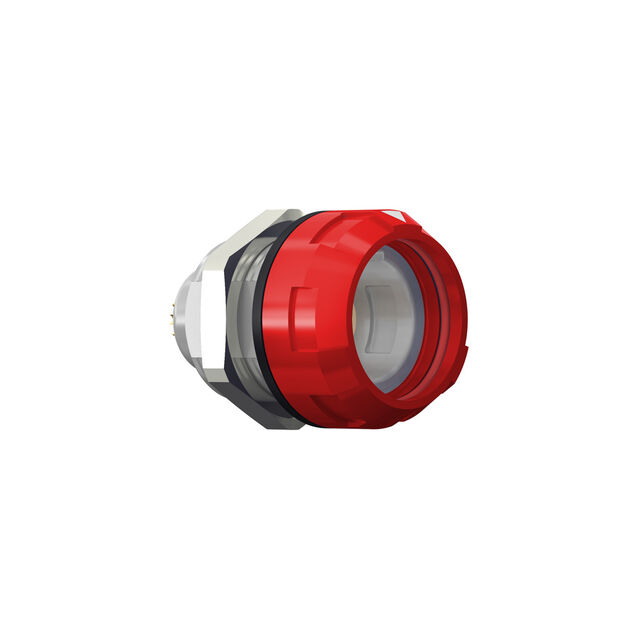

ODU MEDI-SNAP RECEPT,STY4,SZ1,14

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G41MC7-P14LCC0-0020

Active

ODU

ODU MEDI-SNAP RECEPT,STY4,SZ1,14

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G41MC7-P14LCC0-0020

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray, Red
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP64/IP67 - Dust Tight, Water Resistant, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	14
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	C
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	25 V

G41MC7-P Series

Part	Ingress Protection	Mounting Feature	Contact Material	Insert Material	Shell Size - Insert	Orientation	Shielding	Fastening Type	Primary Material	Connector Type	Shell Material	Contact Finish - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Applications	Current Rating (Amps)	Material Flammability Rating	Number of Positions
ODU G41MC7-P05LJG0-0070	IP64/IP67 - Dust Tight Water Resistant Waterproof	Bulkhead - Rear Side Nut	Brass	Polyetheretherketone (PEEK)	1	C	Unshielded	Detent Lock Push-Pull	Plastic	Receptacle Female Sockets	Polysulfone (PSU)	Gold	35 V	-50 °C	120 °C	Gray	Industrial Measurement Medical Testing Equipment	7.5 A	UL94 V-0
ODU G41MC7-P14LCC0-0080	IP64/IP67 - Dust Tight Water Resistant Waterproof	Bulkhead - Rear Side Nut	Brass	Polyetheretherketone (PEEK)	1	C	Unshielded	Detent Lock Push-Pull	Plastic	Receptacle Female Sockets	Polysulfone (PSU)	Gold	25 V	-50 °C	120 °C		Industrial Measurement Medical Testing Equipment	4 A	UL94 V-0	14
ODU G41MC7-P14LCC0-0020	IP64/IP67 - Dust Tight Water Resistant Waterproof	Bulkhead - Rear Side Nut	Brass	Polyetheretherketone (PEEK)	1	C	Unshielded	Detent Lock Push-Pull	Plastic	Receptacle Female Sockets	Polysulfone (PSU)	Gold	25 V	-50 °C	120 °C	Gray Red	Industrial Measurement Medical Testing Equipment	4 A	UL94 V-0	14
ODU G41MC7-P08LFG0-0040	IP64/IP67 - Dust Tight Water Resistant Waterproof	Bulkhead - Rear Side Nut	Brass	Polyetheretherketone (PEEK)	1	C	Unshielded	Detent Lock Push-Pull	Plastic	Receptacle Female Sockets	Polysulfone (PSU)	Gold	10 V	-50 °C	120 °C	Gray Yellow	Industrial Measurement Medical Testing Equipment	7.5 A	UL94 V-0	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.04

Description

General part information

G41MC7-P Series

14 Position Circular Connector Receptacle, Female Sockets Solder Cup
