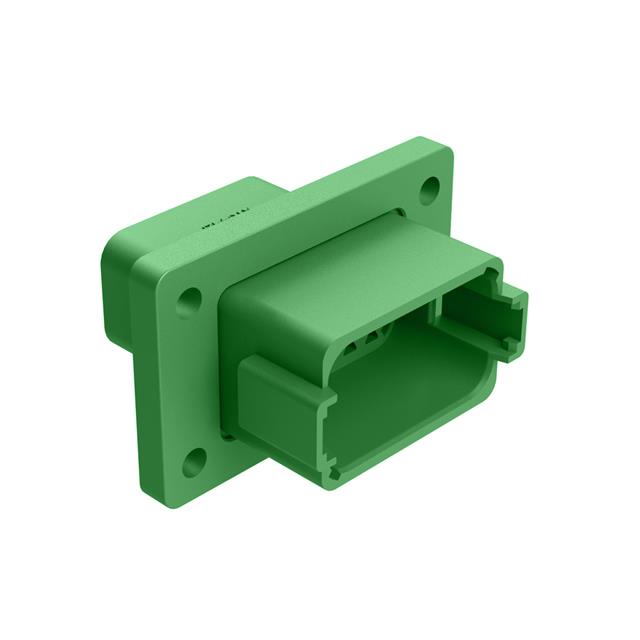

AT04-12PC-CL03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 12POS FLANGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Family

AT04-12PC-CL03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 12POS FLANGE MNT

Deep-Dive with AI

DocumentsDatasheet A Series Family

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-12PC-CL03

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed, Mounting Flange
Insulation Material	Thermoplastic
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-12PC Series

Part	Color	Connector Type	Number of Rows	Insulation Material	Features	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Note	Number of Positions	Fastening Type	Contact Finish - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Insulation Color	Current Rating (Amps)	Applications	Shrouding	Termination	Ingress Protection	Contact Shape	Contact Material	Style
Amphenol Sine Systems Corp AT04-12PC-EC01	Green	Receptacle	2	Thermoplastic	Cap (Cover)	Free Hanging (In-Line)	Male Pin	-55 °C	125 °C	Crimp	Contacts Not Included	12	Latch Holder
Amphenol Sine Systems Corp AT04-12PC-SR2GN	Green	Receptacle	2	Thermoplastic	Cap (Cover) Sealed Strain Relief	Free Hanging (In-Line)	Male Pin	-55 °C	125 °C	Crimp	Contacts Not Included	12	Latch Holder
Amphenol Sine Systems Corp AT04-12PC-CL03	Green	Receptacle	2	Thermoplastic	Mounting Flange Sealed		Male Pin	-55 °C	125 °C	Crimp	Contacts Not Included	12	Latch Holder
Amphenol Sine Systems Corp AT04-12PC-LE07	Green	Receptacle	2	Thermoplastic	Cap (Cover) Mounting Flange Sealed		Male Pin	-55 °C	125 °C	Crimp	Contacts Not Included	12	Latch Holder
Amphenol Sine Systems Corp AT04-12PC-BL05	Green	Receptacle	2	Thermoplastic	Cap (Cover) Mounting Flange Sealed		Male Pin	-55 °C	125 °C	Crimp	Contacts Not Included	12	Latch Holder
Amphenol Sine Systems Corp AT04-12PC-BM01		Receptacle	2	Thermoplastic		Through Hole	Male Pin	-55 °C	125 °C			12	Latch Holder	Gold	All	0.835 "	21.21 mm	Green	13 A	Automotive General Purpose Industrial	Shrouded - 4 Wall	Solder	IP67	Circular	Copper Alloy	Board to Cable/Wire
Amphenol Sine Systems Corp AT04-12PC-BL04	Green	Receptacle	2	Thermoplastic	Mounting Flange Sealed		Male Pin	-55 °C	125 °C	Crimp	Contacts Not Included	12	Latch Holder
Amphenol Sine Systems Corp AT04-12PC-SRGN	Green	Receptacle	2	Thermoplastic	Cap (Cover) Sealed Strain Relief	Free Hanging (In-Line)	Male Pin	-55 °C	125 °C	Crimp	Contacts Not Included	12	Latch Holder
Amphenol Sine Systems Corp AT04-12PC-BM03		Receptacle	2	Thermoplastic		Through Hole	Male Pin	-55 °C	125 °C			12	Latch Holder	Nickel	All	0.835 "	21.21 mm	Green	13 A	Automotive General Purpose Industrial	Shrouded - 4 Wall	Solder	IP67	Circular	Copper Alloy	Board to Cable/Wire
Amphenol Sine Systems Corp AT04-12PC-L012	Green	Receptacle	2	Thermoplastic	Mounting Flange Sealed		Male Pin	-55 °C	125 °C	Crimp	Contacts Not Included	12	Latch Holder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.78
		10	$ 5.25
		25	$ 4.97
		50	$ 4.86
		100	$ 4.63
		300	$ 4.05
		500	$ 3.93
		1000	$ 3.35
		2500	$ 3.12

Description

General part information

AT04-12PC Series

12 Rectangular Connectors - Housings Receptacle Green

Documents

Technical documentation and resources

Datasheet

A Series Family

Datasheet
