317-027-541-608

Active

EDAC Inc.

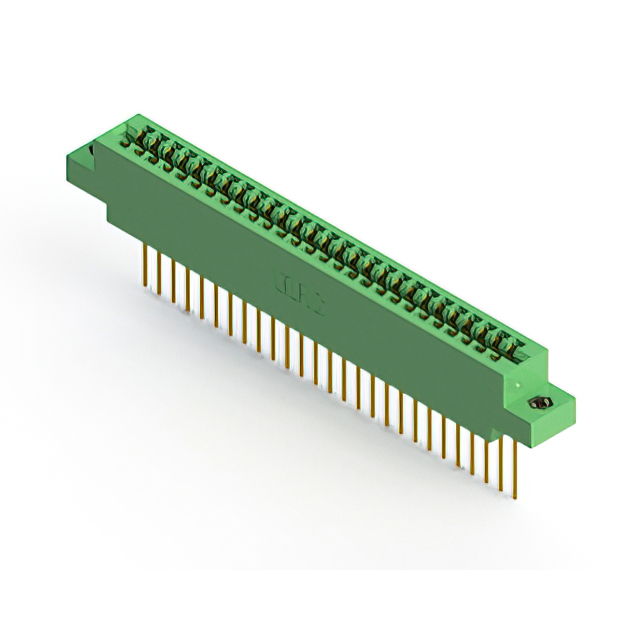

CARD EDGE CONNECTOR, 27 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, #4-40, GREEN INSULATOR,

Search across all available documentation for this part.

Active

EDAC Inc.

CARD EDGE CONNECTOR, 27 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, #4-40, GREEN INSULATOR,

Technical Specifications

Parameters and characteristics for this part

Specification	317-027-541-608

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	54
Number of Positions/Bay/Row [custom]	27
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap

Part	Contact Type	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Material - Insulation	Termination	Mounting Type	Read Out	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Gender	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Features
EDAC Inc. 317-027-541-604	Cantilever	Non Specified - Dual Edge	0.156 in	Top Mount Opening Unthreaded	3.96 mm	27	2	10 Áin	0.25 Ám	Gold	Diallyl Phthalate (DAP)	Wire Wrap	Through Hole	Single	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Green	125 °C	-65 ░C	54
EDAC Inc. 317-027-541-608	Cantilever	Non Specified - Dual Edge		4-40 Threaded Insert Top Mount Opening		27	2	10 Áin	0.25 Ám	Gold	Diallyl Phthalate (DAP)	Wire Wrap	Through Hole	Single	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Green	125 °C	-65 ░C	54
EDAC Inc. 317-027-541-607	Cantilever	Non Specified - Dual Edge		M3 Threaded Insert Top Mount Opening		27	2	10 Áin	0.25 Ám	Gold	Diallyl Phthalate (DAP)	Wire Wrap	Through Hole	Single	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Green	125 °C	-65 ░C	54
EDAC Inc. 317-027-541-678	Cantilever	Non Specified - Dual Edge		4-40 Threaded Insert Top Mount Opening		27	2	10 Áin	0.25 Ám	Gold	Diallyl Phthalate (DAP)	Wire Wrap	Through Hole	Single	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Green	125 °C	-65 ░C	54	Card Guides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 72.36

General part information

54 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
