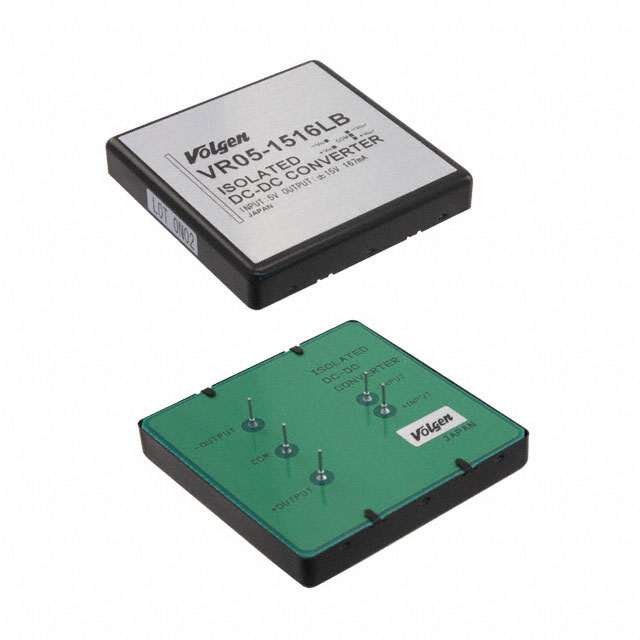

VR05-1516LB
ActiveVolgen + Furuno
DC DC CONVERTER +/-15V 5W
Deep-Dive with AI
Search across all available documentation for this part.
VR05-1516LB
ActiveVolgen + Furuno
DC DC CONVERTER +/-15V 5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VR05-1516LB |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 167 mA |
| Current - Output (Max) | 167 mA |
| Efficiency | 64 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 51.3 mm |
| Size / Dimension [x] | 2.02 in |
| Size / Dimension [y] | 51.3 mm |
| Size / Dimension [y] | 2.02 " |
| Size / Dimension [z] | 9.8 mm |
| Size / Dimension [z] | 0.39 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 4.75 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 80.40 | |
Description
General part information
VR05-1516 Series
Isolated Module DC DC Converter 2 Output 15V -15V 167mA, 167mA 4.75V - 6V Input
Documents
Technical documentation and resources
No documents available
