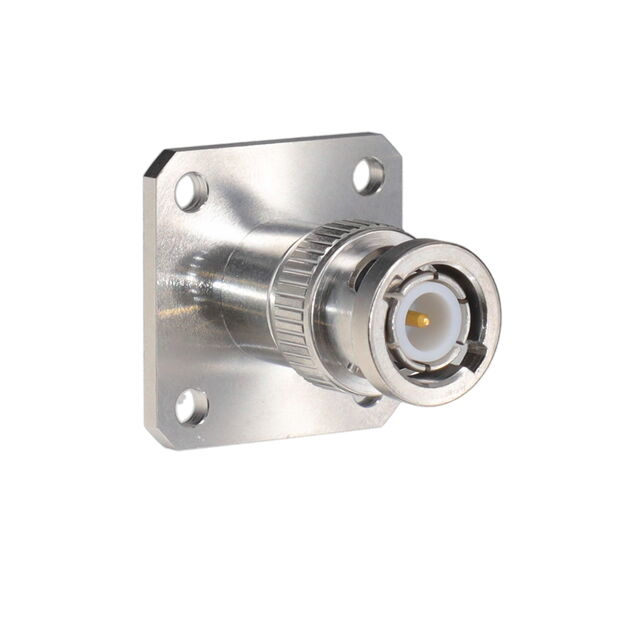

13_BNC-50-0-2/133_NE

Active

Huber+Suhner, Inc.

RF COAX CONN, BNC, FLANGED PLUG, 50 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF COAX CONN, BNC, FLANGED PLUG, 50 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	13_BNC-50-0-2/133_NE

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Dielectric Material	Connector Style	Number of Ports	Body Finish	Connector Type	Housing Color	Fastening Type	Mating Cycles	Impedance	Shield Termination	Center Contact Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Voltage Rating	Mounting Feature	Contact Termination	Body Material
Huber+Suhner, Inc. 13_BNC-50-0-2/133_NE	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	BNC	1	White Bronze	Male Pin Plug	Silver	Bayonet Lock	500	50 Ohms	Solder	Brass	4 GHz	-65 ░C	165 °C	Gold	500 V	Flange	Solder	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Panel Mount Solder
