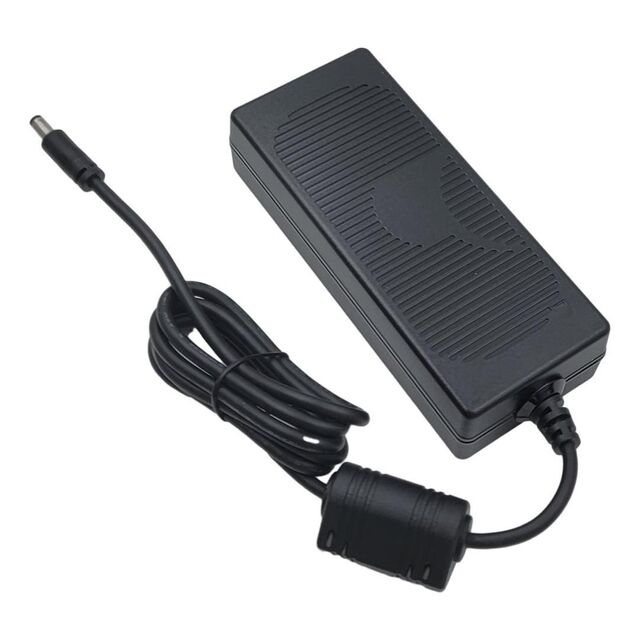

TR9CE9200LCP-IM(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 110W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 110W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CE9200LCP-IM(R6B)

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, ETL, CB, CE, S-Mark, cETLus, VCCI, BSMI, UKRSepro, CCC, EAC
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	9.2 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	110 W
Region Utilized	International
Size / Dimension [x]	149.3 mm
Size / Dimension [x]	5.88 in
Size / Dimension [y]	62.8 mm
Size / Dimension [y]	2.47 in
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	62368-1, 60601-1-11, 60601-1-2, 61347-1, 60335-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Input Connector	Efficiency	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Polarization	No Load Power Consumption [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]	Current - Output (Max) [Max]	Cord Length	Cord Length	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Form	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Standard Number	Applications	Voltage - Output	Output Connector
GlobTek, Inc. TR9CE9200LCP-IM(R6B)	IEC 320-C14	Level VI	110 W	90 VAC	264 VAC	Cord	Positive Center	150 mW	Barrel Plug	2.5 mm 5.5 mm	11 mm	9.2 A	1.2 m	47.2 in	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UKRSepro VCCI	Desktop (Class I)	-20 C	40 °C	International	60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	Household Appliances ITE (Commercial) Medical	12 V
GlobTek, Inc. TR9CE9200YL4CIM(R6B)	IEC 320-C14	CoC Tier 2 Level VI	110 W	90 VAC	264 VAC	Cord	Positive Center	150 mW	Power DIN			9.2 A	1.2 m	47.2 in	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UKRSepro VCCI	Desktop (Class I)	-10 °C	40 °C	International	60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	Household Appliances ITE (Commercial) Medical	12 V	4 Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 110 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
