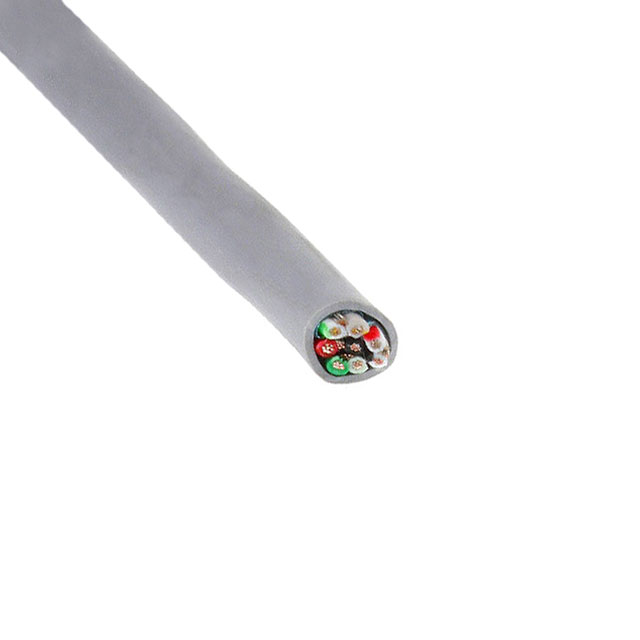

2467C SL001

Active

ALPHA WIRE

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 4 PAIR, 20 AWG, 0.56 MM², 1000 FT, 304.8 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 4 PAIR, 20 AWG, 0.56 MM², 1000 FT, 304.8 M

Technical Specifications

Parameters and characteristics for this part

Specification	2467C SL001

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.34 in
Jacket (Insulation) Diameter [diameter]	8.64 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Length	Length	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Shield Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Cable Type	Shield Coverage	Conductor Material	Usage	Jacket Color	Features
ALPHA WIRE 2467C SL001	1000 ft	304.8 m	20 AWG	0.34 in	8.64 mm	300 V	Aluminum	Foil	28	7	8	Poly-Vinyl Chloride (PVC)	0.762 mm	0.03 in	Polypropylene (PP)	Multi-Pair	100 %	Copper Tinned	Communication Control	Slate	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.76
Newark	Spool of 1000	1	$ 5437.44

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Slate 20 AWG Foil 1000.0' (304.8m)
