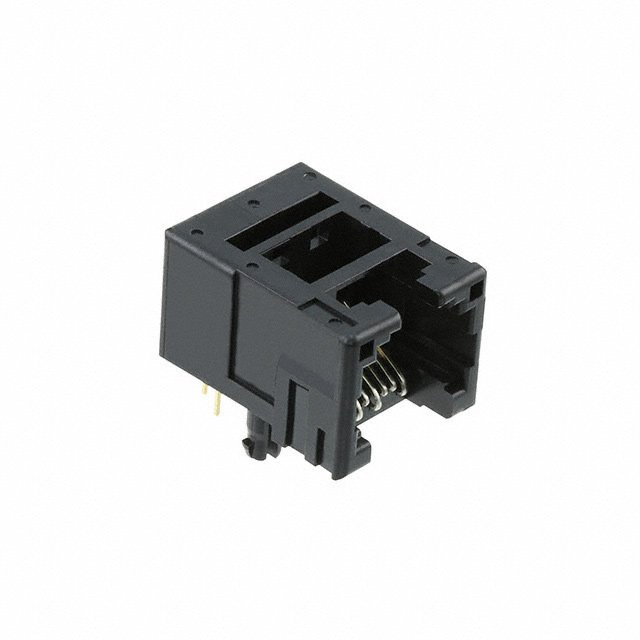

TM22R-5C-88(50)

Obsolete

Hirose Electric USA, Inc.

CONN MOD JACK 8P8C R/A UNSHLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN MOD JACK 8P8C R/A UNSHLD

Technical Specifications

Parameters and characteristics for this part

Specification	TM22R-5C-88(50)

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Up
Termination	Solder

Part	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Ports	Shielding	Housing Material	Mounting Type	Orientation	Connector Type	LED Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Contacts	Tab Direction	Number of Rows	Contact Material
Hirose Electric USA, Inc. TM22R-5C-88(50)	Gold	-25 °C	80 C	Solder	1	Unshielded	Polybutylene Terephthalate (PBT)	Through Hole	90 °	Jack	Does Not Contain LED	50 µin	1.27 µm	8p8c (RJ45 Ethernet)	Up	1	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded

Technical documentation and resources

No documents available
